1.8mil Thickness ESD Adhesive Tape

Description
Backing Thickness: 0.025mm
High Light:

1.8mil ESD Adhesive Tape

,

OEM ESD Adhesive Tape

,

1.8mil anti static tape

1.8mil Thickness ESD Adhesive Tape



1.8mil thickness ESD adhesive tape anti-static transparent packing tape with strong adhesion and clean removal



E1-F921B is a transparent tape coated with acrylic pressure sensitive adhesive on the surface of PET film. It has good adhesion.



Features And Benefits:

1. strong adhesion, no residual glue after removal.

2. Low electrostatic discharge at unwind.

3. Excellent antistatic performance.

4. RoHS Compliant.



Anti Static Tape Properties:

Item Typical Value
Imperial Metric
Backing 1.0mil 0.025mm
Total Thickness 1.8±0.2mil 0.045±0.005mm
Adhesion to Steel 3.5lbs/in 15N/25mm
Tensile Strength ≥22.85lbs/in ≥4(KN/M)
Elongation ≥90% ≥90%
Surface Resistance 106~8ohms 106~8ohms
Static Discharge (Removal from roll) <100V <100V

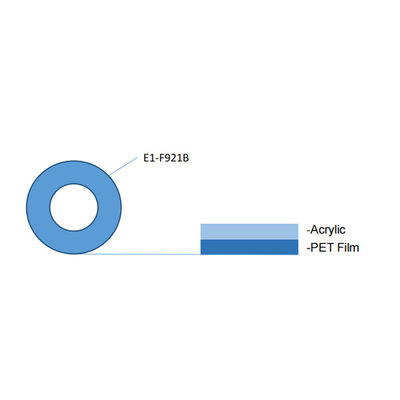

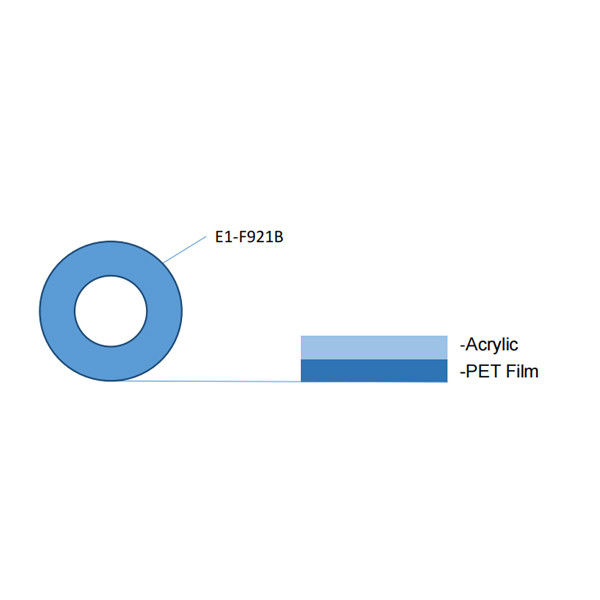

Construction:

1.8mil Thickness ESD Adhesive Tape 0



Application:

The product can be applied to various environments with anti- static requirements, such as fixing,connecting and packaging of electronic manufacturing.It can also be used as temporary bonding and electronic packaging.



Storage:

1.Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2.Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1.Surface should be clean, dry, free of dust, oil or other contaminants.

2.Proper pressure required by roller, hand or press when applying.

3.Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. SGS certification.

2. Advanced production and processing equipment, environmentally friendly and reliable products.

3. Good reputation and after-sales service team.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
