| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KHJ |
| Certification: | ROHS |
| Model Number: | SMS01 series |
| Minimum Order Quantity: | 1 Bag |
| Price: | Negotiable |
| Delivery Time: | 3-5 workdays |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000㎡/day |
| Product Name: | SMS01 Series | Material: | PET |
|---|---|---|---|
| Adhesive: | Acrylic | Size: | 8mm,12mm,16mm,24mm，32mm，44mm，56mm，72mm，88mm |
| Color: | Yellow, Black, Blue, Green, Pink, Etc Are Available | Certification: | RoHS |
| Highlight: | SMT Double Splice Tape 8mm,12mm SMT Double Splice Tape,8mm double splice tape |
||
Multiple product types:
1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;
Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.

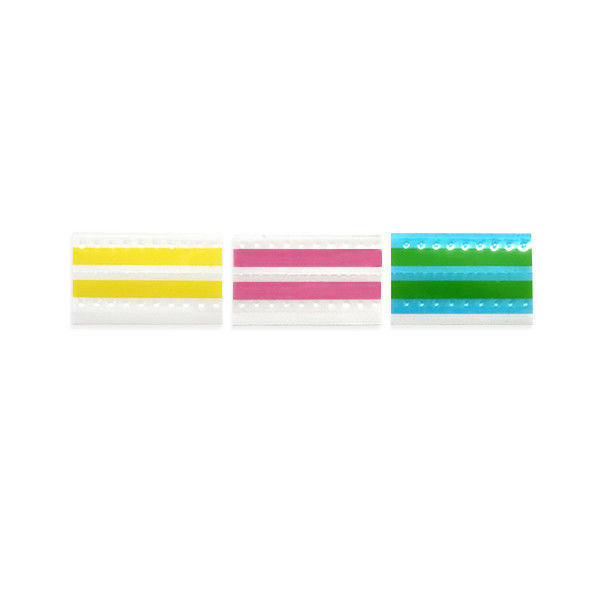

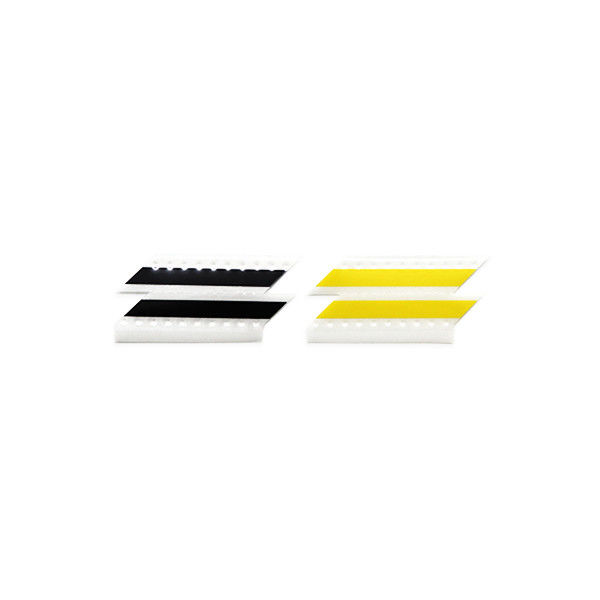

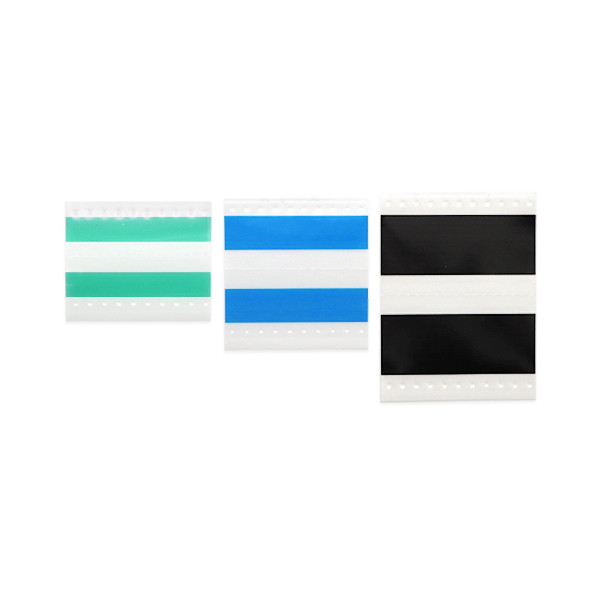

Universal 01 series SMT double splice tape with double embossed dots designed apply for all sizes(8/12mm/16mm/24mm/32/44/56/72/88mm)of carrier tape
01 series double splice tape is used for jointing carrier tapes in the SMT process. It is made of 2 tapes,release paper and PET material with superior adhesion.
Features And Benefits:
1. Double embossed dots designed, one piece for one jointing.
2. Easy operation, no need to use auxiliary tools.
3. Available for all SMT machines except sensitive machine.
Application:
Used for jointing carrier tapes in the SMT process and Solving the connection problem of the carrier tape.
Properties:
| P/N | Qty | Carrier Tape Size | Color | ESD | NO ESD |
|
SMS0108/12/16/ 24/32/44/56/72/88 |
500/250 Pcs/Box |
8mm/12mm/16mm/24mm/32mm/ 44mm/56mm/72mm/88mm |
C | √ | √ |
| B | √ | ||||
| G | √ | √ | |||
| M | √ | √ | |||
| L | √ |
Structure:
Technical Data:
| No | Item | Technical Parameter |
| 1 |
Peeling-off force (N/25mm) by angle of 180 degree |
≥15 |
| 2 |
Retaining (H/25*25mm) time |
＞100 |
| 3 |
Tensile strength at break (N/25mm) |
＞4.0 |
| Storage Condition: |
| Temperature: 20℃-30℃ |
| Ralative Humidity(RH): 45%-65% |
| Shelf-life: One year |
Keywords:SMT normal splice tape, SMT double splice tape, ESD SMT splice tape
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
