Double Coated Anti Static UV Release Tape Polyester High Temperature 0.12mm

Double Coated Anti Static UV Release Tape Polyester High Temperature 0.12mm

Brand Name: KHJ
Model Number: E2-UV381D
MOQ: 1pcs
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHS
Product Name:
E1-UV381D
Backing Thickness:
0.100 ±0.002mm
Total Tape Thickness:
0.120±0.005mm
Peeling Strength:
Before UV: >6N/25mm; After UV: 0.3N/25mm
Tensile Strength At Break:
8KN/M
Elongation At Break:
≥45%
Packaging Details:
Plastic bag + carton
Supply Ability:
50000 rolls per month
Highlight:

0.12mm Polyester UV Release Tape

,

0.12mm UV Release Tape

,

0.12mm uv resistant clear tape

Product Description

Double Coated Anti Static UV Release Tape Polyester High Temperature 0.12mm 0Double Coated Anti Static UV Release Tape Polyester High Temperature 0.12mm 1Double Coated Anti Static UV Release Tape Polyester High Temperature 0.12mm 2

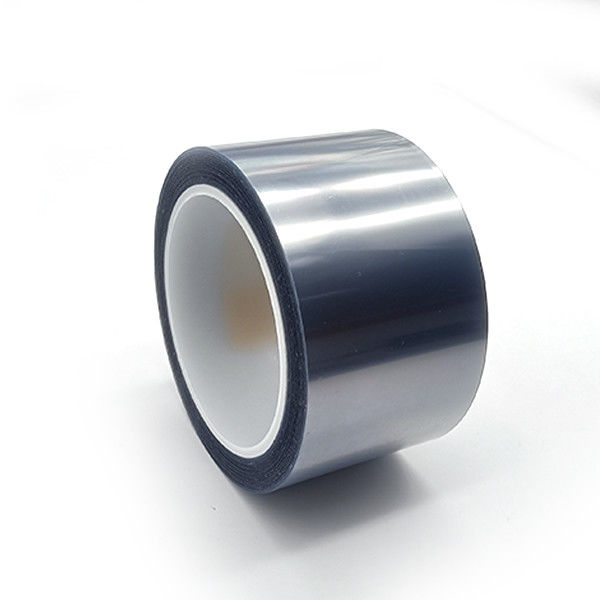

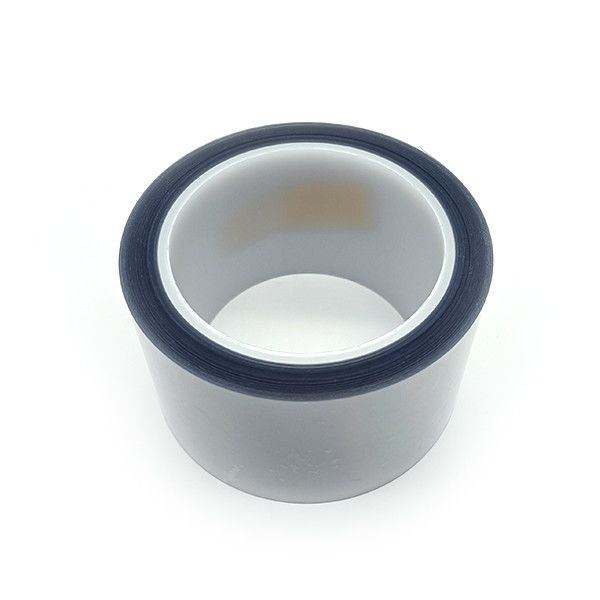

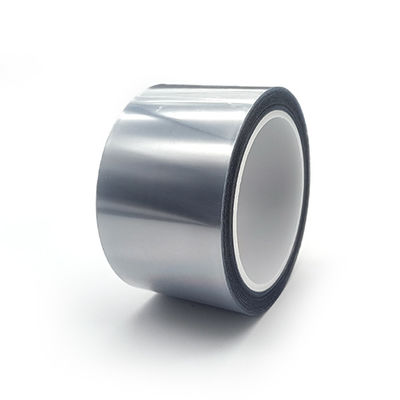

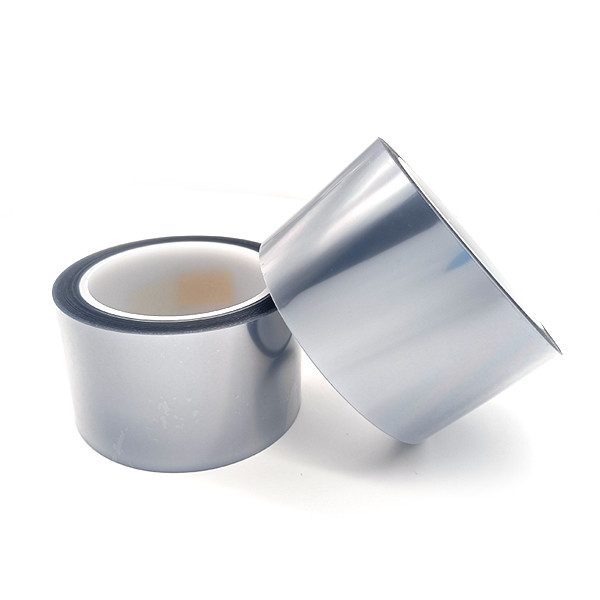

Double Coated Anti Static UV Release Tape Polyester High Temperature 0.12mm



Double-coated anti-static high temperature UV-releasing adhesive polyester tape E2-UV381D lower adhesion after UV irradiation



E2-UV381D is a high performance product coating UV adhesive on the surface of polyester. It has high initial peeling strength. Low adhesion after UV irradiation and no residue after peeling off.



Features and Benefits:

1. High initial adhesion.

2. Low adhesion after UV curing, easy to separate.



uv resistant clear tape Properties:

Item

Typical Value

Test Method

Backing 0.100 ±0.002mm /
Total Thickness 0.120±0.005mm /
Peeling strength 6N/25mm GBT 2792-2014
  0.3N/25mm
Tensile Strength ≥8(KN/M) GBT 30776-2014
Elongation ≥45% GBT 30776-2014
Surface Resistance 10 6~9 ohms /

Adhesive Side Resistance



10 6-9 ohms /



Construction:

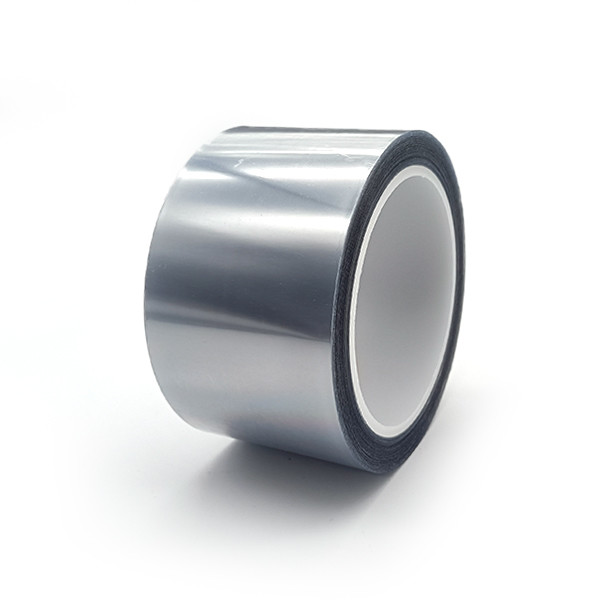

Double Coated Anti Static UV Release Tape Polyester High Temperature 0.12mm 3



Application:

1. Wafer, component, glass cutting and grinding process cutting.

2. 3D glass bonding process, component packaging transfer.

3. Soft lithium battery protection, metal and anti-static protection.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. Good reputation and after-sales service team.



Competitive advantages of our factory:

1. Environmentally friendly products.

2. Various designs.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
