| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | KHJ |
| Certification: | ROHS |
| Model Number: | SMS13 series |
| Minimum Order Quantity: | 1 Bag |
| Price: | Negotiable |
| Delivery Time: | 3-5 workdays |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000㎡/day |
| Product Name: | SMS13 Series | Material: | PET |
|---|---|---|---|
| Adhesive: | Acrylic | Size: | 8mm,12mm,16mm,24mm，32mm，44mm，56mm，72mm，88mm |
| Color: | Black | Peeling-off Force: | (N/25mm) By Angle Of 180 Degree≥15 |
| Highlight: | Panasonic SMT Splice Tape,88mm SMT Splice Tape,72mm SMT Carrier Tape |
||
Multiple product types:
1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;
Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.

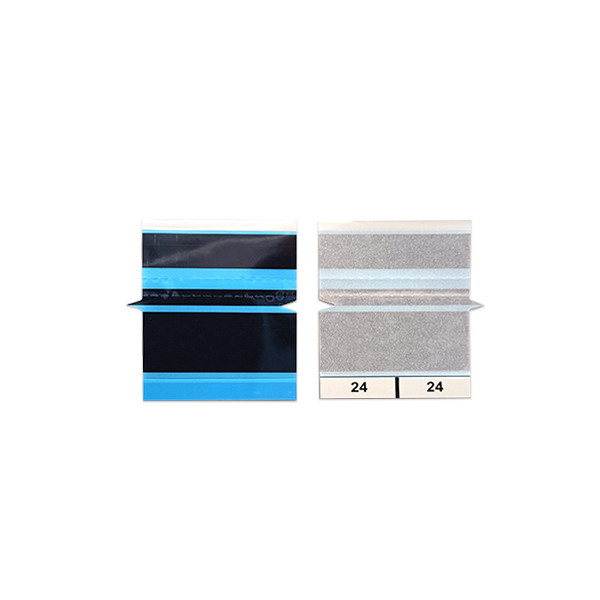

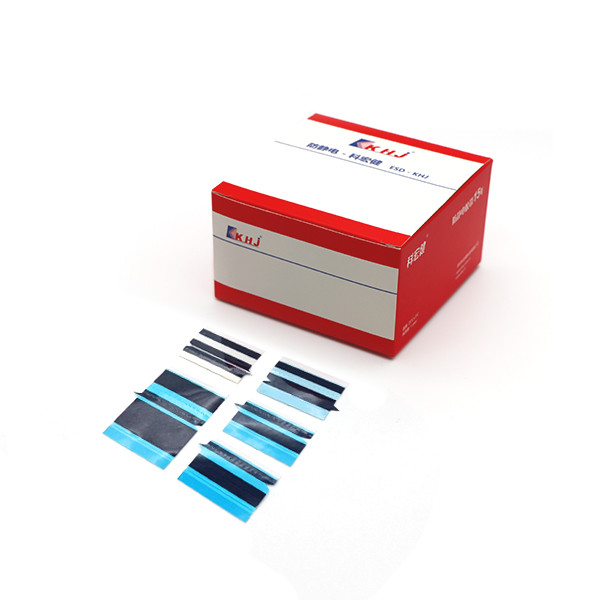

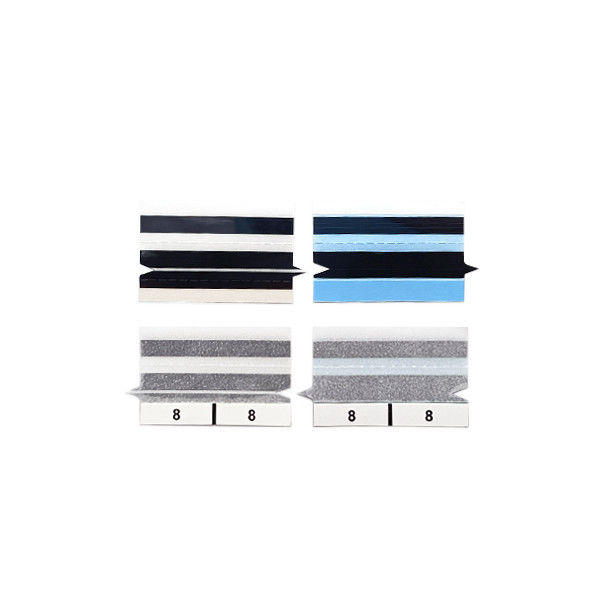

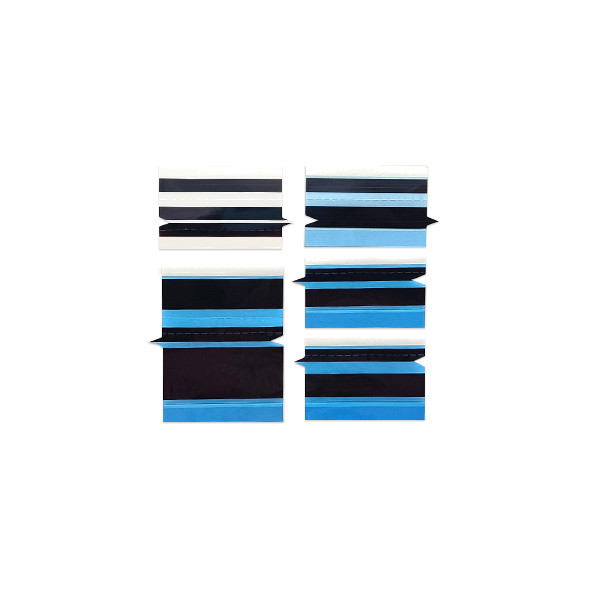

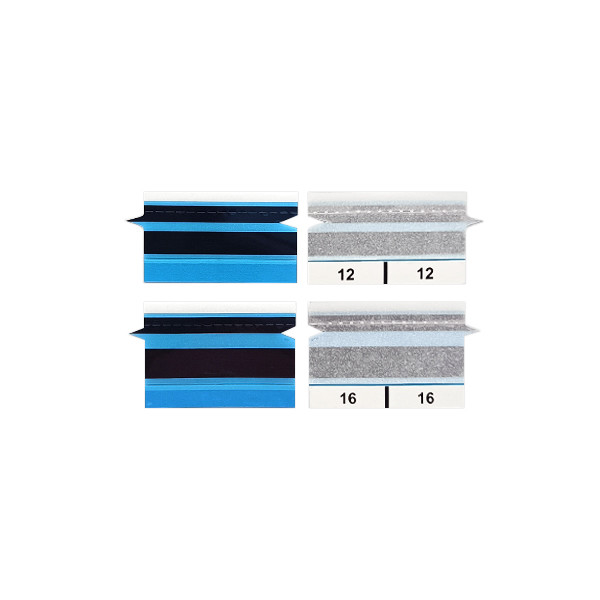

KHJ 13 Series Panasonic Special Splice Tape,Applicable to all size (8/12/16/24/32/44/56/72/88mm)carrier tapes
13 series splice tape is used for jointing carrier tapes in the SMT process. It is made of tapes and polyester film and release paper, and the tape is with superior adhesion.
Features And Benefits:
1. No need to use with tools, edge positioning design, easy operation, more accurate jointing.
2. Double sides tape with a extra edge tape coverage more reliable jointing.
3. Machine detective, applicable to Panasonic SMT machine.
Application:
Used for SMT process,to solve SMT carrier tape connection problems.
Properties:
| P/N | Qty | Carrier Tape Size | Color | ESD | NO ESD |
|
SMS1308/12/16/ 24/32/44/56/72/88 |
500/250Pcs/Box |
8mm/12mm/16mm/24mm/32mm/44mm |
G | √ | √ |
| M | √ | √ |
| Storage condition: |
| Temperature: 20℃-30℃ |
| Ralative Humidity(RH): 45%-65% |
| Shelf-life: One year |
Keywords:SMT Splice Tape, SMT Special Splice Tape, SMT Panasonic Special Splice Tape
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
