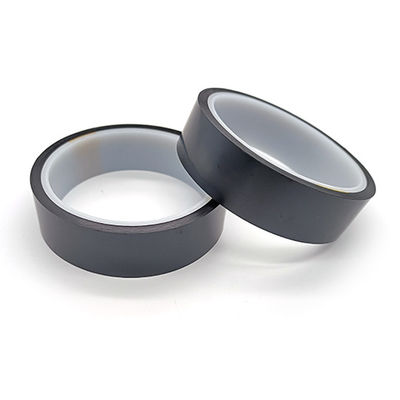

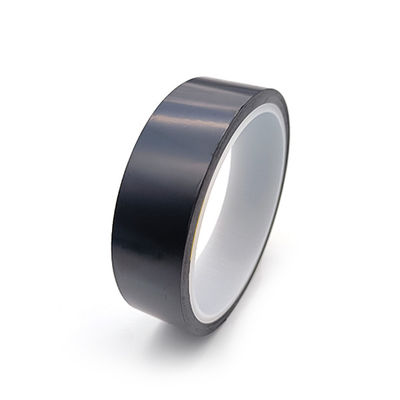

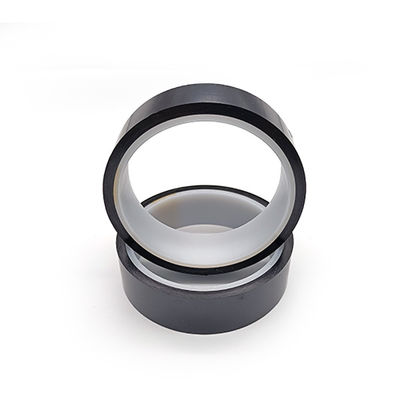

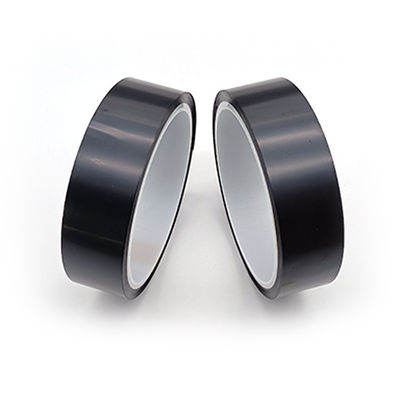

Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application

Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application
Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application

Large Image :  Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E2-B82IB
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day

Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application

Description
Product Name: E2-B82IB Backing Thickness (μm): 25±3
Thermal Conductivity(w/mk): 0.2±0.05 Color Surface: Matt Black
Color Inside: Glossy Black Upmost Temperature: 260℃

Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application



E2-B82IB is a black polyimide film with good mechanical properties and high temperature resistance, and has good antistatic properties.



Features And Benefits:

1. Excellent Double sides anti-static performance.

2. Excellent thermal conductivity and protection of components.

3. RoHS Compliant.



Properties:

Item Black Thermal Tape Test Value Test Method
Color Surface Matt black Visual inspection
Inside Glossy black Visual inspection
Backing thickness (μm) 25±3 Micrometer
Surface resistance(ohms) Both face 104-9 Surface impedance meter
Thermal Conductivity(w/mk) 0.2±0.05 Thermal conductivity tester
Transmittance(%) 0
Tensile Strength(MPa) >80 GBT 30776-2014
Elongation(%) >20
Upmost using Temperature(℃) 260℃ JG/T25-2017



Construction:

Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application 0

Application:

Typical applications, widely used for buffer protection under various high and low temperature conditions, such as high temperature welding of flexible boards.

Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application 1



Anti-static polyimide Film E2-B821B for ACF heat bonding and heat conductive application 2



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 6 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. The product should be far away from heat and fire sources;

2. Surface should be clean, dry, free of dust, oil or other contaminants.

3. The product should be kept in the original packaging and stored in a cool and dry environment, away from direct sunlight.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
