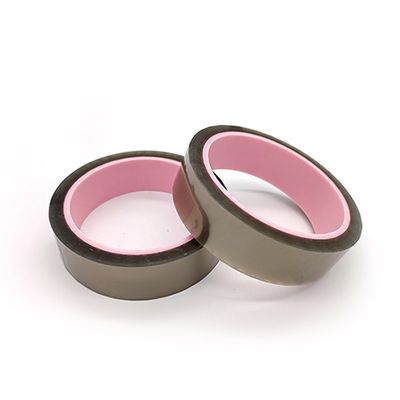

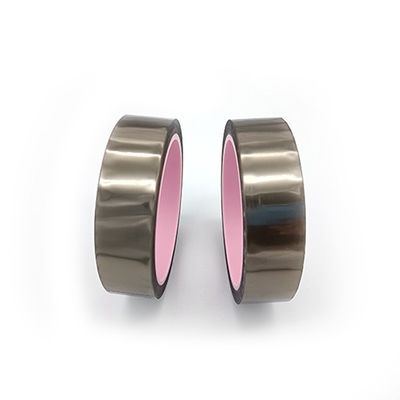

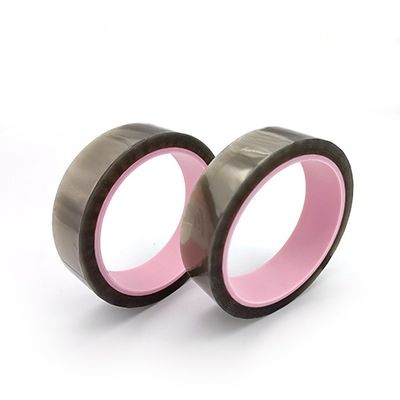

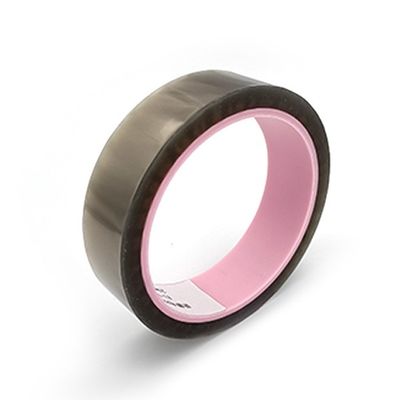

Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating

Certification
China Shenzhen KHJ Technology Co., Ltd certification
China Shenzhen KHJ Technology Co., Ltd certification
I'm Online Chat Now

Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating

Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating
Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating

Large Image :  Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-TH862TD
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag+ Carton
Delivery Time: 1 Week
Payment Terms: L/C, T/T
Supply Ability: 10000 M2/Day

Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating

Description
Product Name: E1-TH862TD Backing Thickness: 0.025mm
Total Tape Thickness: 0.06±0.005mm Adhesion To Steel: 5~7N/25mm
Tensile Strength At Break: ≥4(KN/M) Upmost Temperature: 200℃
High Light:

0.06mm Heat Resistant Adhesive Tape

,

OEM Heat Resistant Adhesive Tape

,

0.06mm clear heat resistant tape

Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating



Power coating antistatic clear polyester tape E1-TH862TD heat resistant adhesive tape with super antisatic performance



E1-TH862TD is is a Anti-static polyester film-backed silicone adhesive tape with high temperature resistant and low static clear tape.



Features And Benefits:

1. Resistant high temperature up to 200℃.

2. No residue after removal.

3. Excellent anti-aging ability, long shelf life.

4. Low electrostatic discharge at unwind and removal.

5. RoHS Compliant.



Application:

Masking for thermal sensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.



Properties:

Product clear heat resistant tape Units Test values
Backing Thickness: mm 0.025
Total Tape Thickness: mm 0.060±0.005
Tack   ≥26(J.DOW/#)
Adhesion to Steel: N/25mm 5~7N
Tensile Strength at Break: KN/M ≥4
Elongation at Break: % ≥90%
Upmost Temperature ° C 200
Surface Resistance ohms 105~10ohms
Static Discharge(Removal from roll) Voltage <100V



Construction:

Clear Polyester Heat Resistant Adhesive Tape 0.06mm Anti Static Power Coating 0



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
