Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: IH852
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Backing Thickness: |
0.025um |
Total Tape Thickness: |
0.055±0.005um |
Adhesion To Steel: |
4-6N/25mm |
Tensile Strength At Brea: |
≥3.5KN/M |
Elongation At Break: |
≥45% |
Upmost Temperature: |
280℃ |
Backing Thickness: |
0.025um |
Total Tape Thickness: |
0.055±0.005um |
Adhesion To Steel: |
4-6N/25mm |
Tensile Strength At Brea: |
≥3.5KN/M |
Elongation At Break: |
≥45% |
Upmost Temperature: |
280℃ |

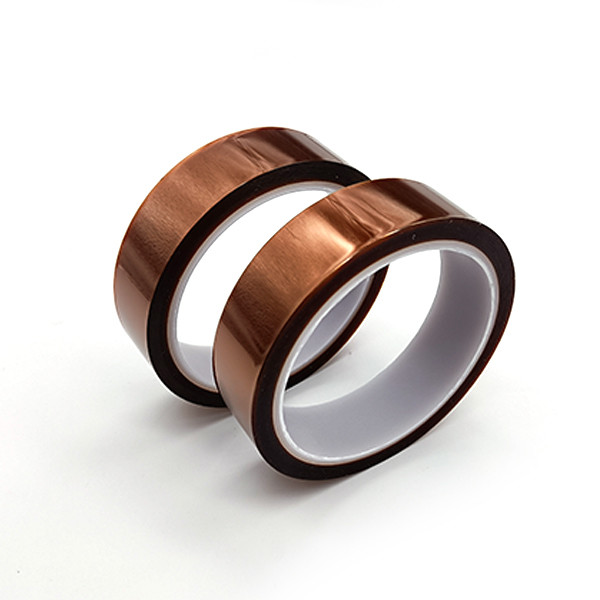

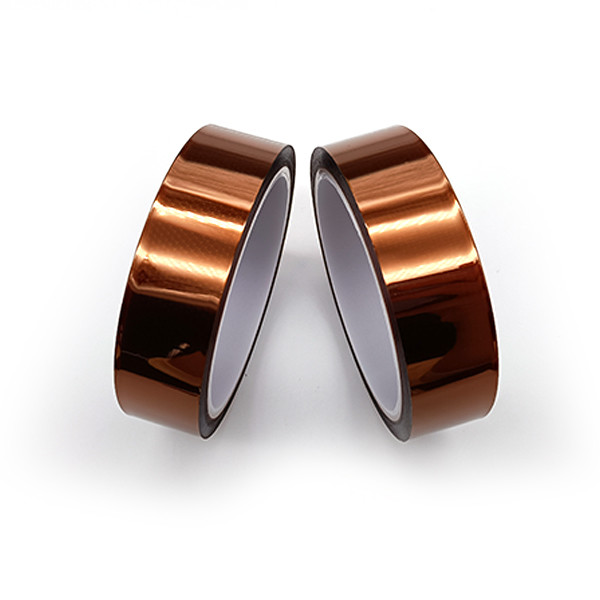

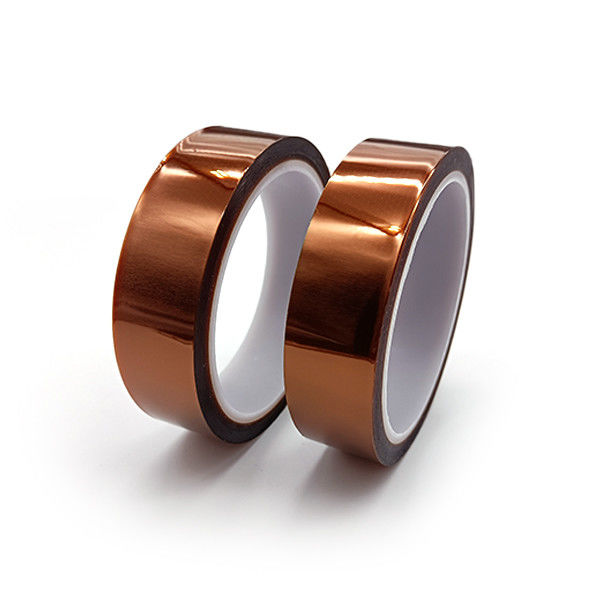

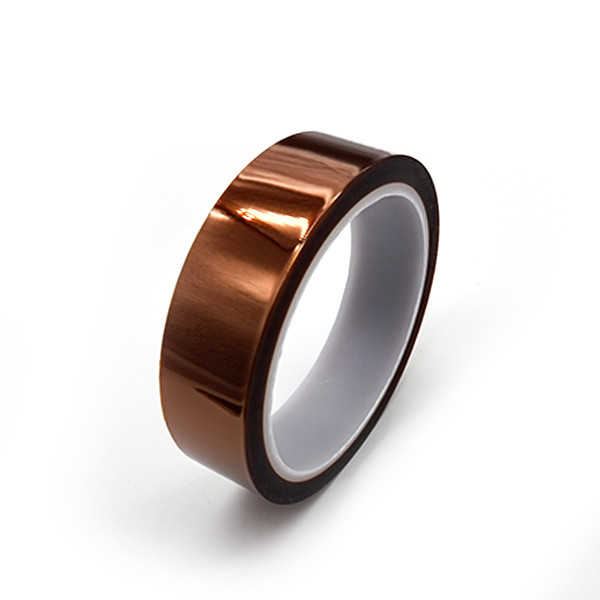

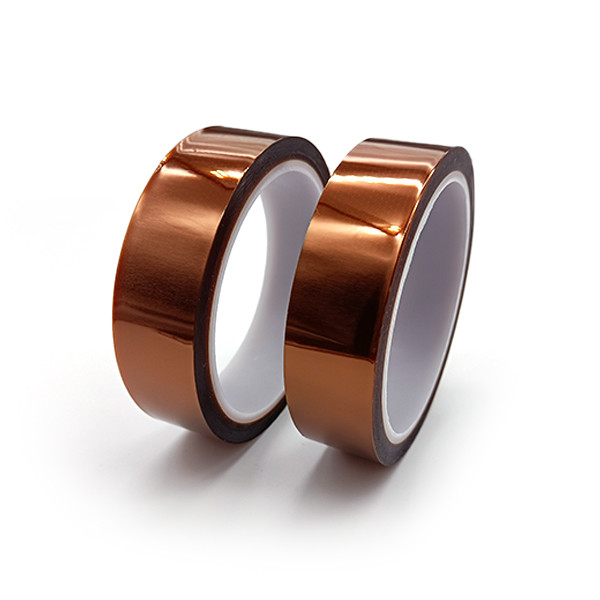

Kapton Heat Resistant Masking Tape Polyimide Film Backed Silicone Adhesive Tapes
Kapton Polyimide Film Tape IH852 With Excellent Heat Resistance
IH852 is a polyimide film backed silicone adhesive tape with excellent heat resistance and insulation properties.
Features And Benefits:
1. Electrical insulation and clean removal without residue.
2. Resistant high temperature up to 280℃ for 10 minutes.
3. Excellent tensile strength & Elongation.
4. RoHS Compliant.
Application:
1. Mask for printed circuit boards during wave solder or solder dip process.
2. Masking contacts during spray painting, powder coating & solder coating.
3. Bundling of transformer, motor, battery & electronic components for insulation purpose.
Properties:
| Item | Typical Value | |
| Imperial | Metric | |
| Backing | 1.0mil | 0.025mm |
| Total Thickness | 2.2mil | 0.055±0.005mm |
| Tack | / | ≥26(J.DOW/#) |
| Adhesion to Steel | 0.91～1.37lbs/in | 4～6N/25mm |
| Tensile Strength | ≥20lbs/in | ≥3.5(KN/M) |
| Elongation | ≥45% | ≥45% |
| Dielectric Strength | >4000V | >4000V |
|
Maximum Operating Temperature |
536℉ | 280℃ |
Construction:
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
