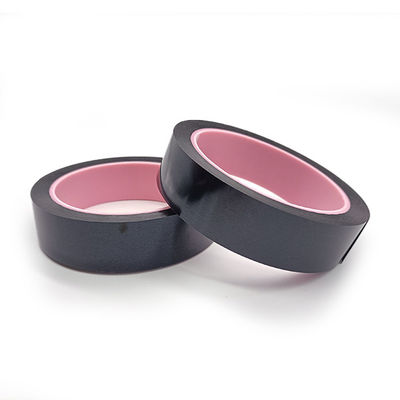

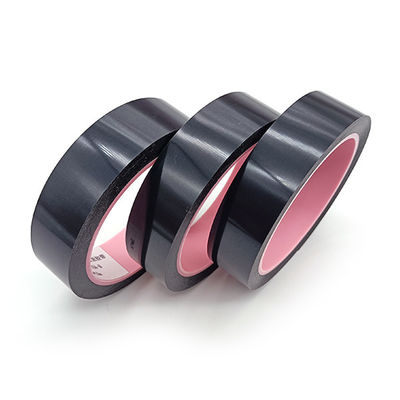

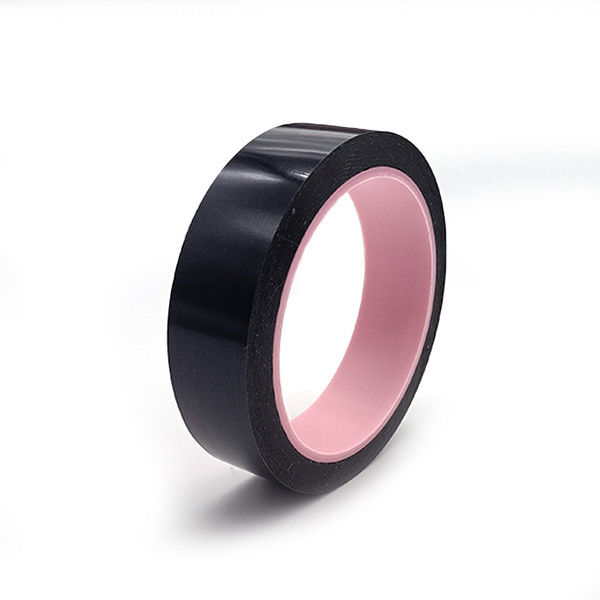

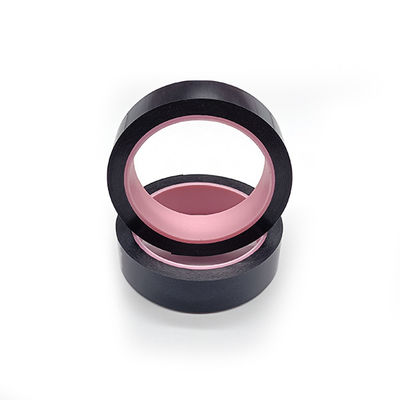

Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge

Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge
Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge

Large Image :  Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E2-DIH776A-B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month

Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge

Description
Product Name: E2-DIH776A-B Total Tape Thickness: 0.205±0.01mm
Elongation At Break: ≥50% Static Discharge (Removal From Roll): <200V
Tensile Strength At Break: ≥8KN/M Upmost Temperature: 260℃
High Light:

Double Sided ESD Adhesive Tape

,

Silicone Coated ESD Adhesive Tape

,

Double Sided Polyimide Tape

Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge



Anti-Static double-side coated silicone adhesive E2-DIH776A-B polyimide tape with low electrostatic discharge at unwind



E2-DIH776A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance and low static discharge.



Features And Benefits

1. Low electrostatic discharge at unwind.

2. Excellent tensile strength & Elongation.

3. Resistant high temperature up to 500℉.

4. Both sides with different adhesion, no any residue after removal.



Properties:

Item Double Sided Polyimide Tape Typical Value
Imperial Metric
Backing 3.32mil 0.083±0.003mm
Total Thickness 8.2mil 0.205±0.01mm
Adhesion to Steel A adhesive >0.62lbs/in >6.5N/25mm
B adhesive <0.096lbs/in <1N/25mm
Surface Resistance / <1011ohms
Tensile Strength ≥45.7lbs/in ≥8(KN/M)
Elongation ≥50% ≥50%
Static Discharge (Removal from roll) <200V <200V
Maximum Operating Temperature 500℉ 260℃



Construction:
Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge 0



Application

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.

Silicone Coated ESD Adhesive Tape Double Sided Polyimide Tape Low Electrostatic Discharge 1



Storage

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.



Notes

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
