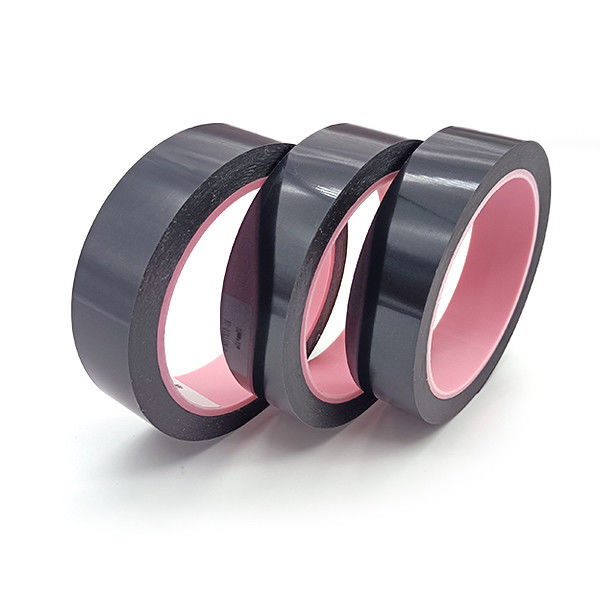

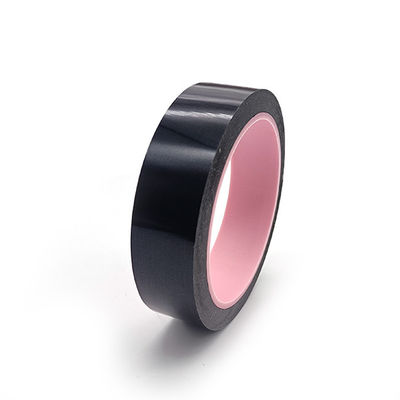

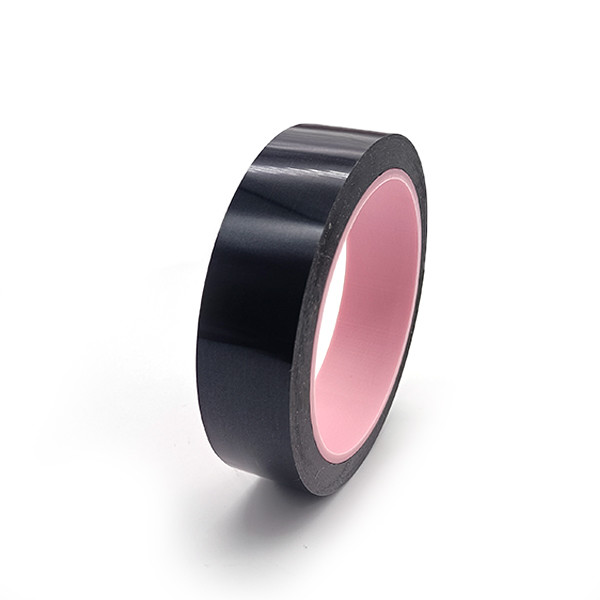

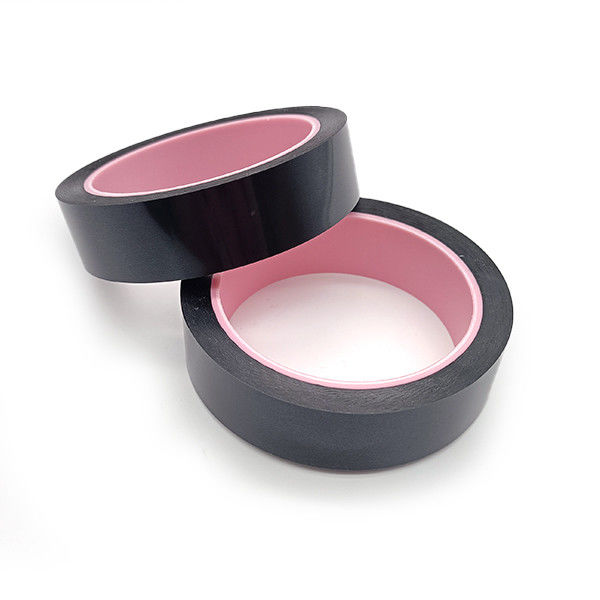

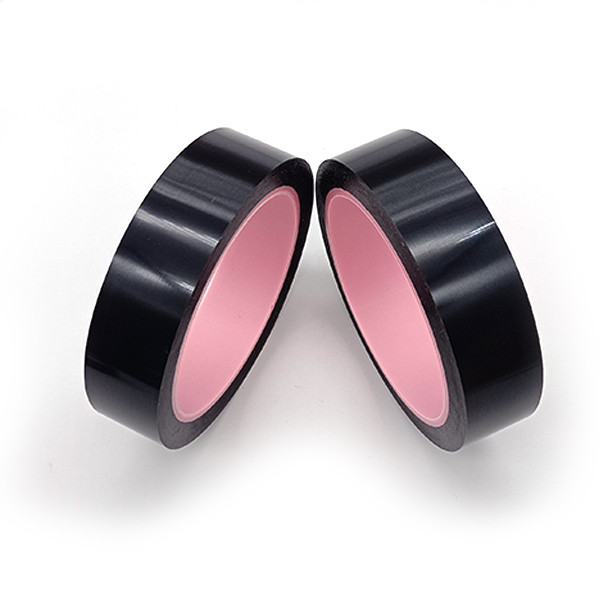

Double Side Polyimide Heat Resistant Tape 8.2mil Low Anti Static

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: E2-DIH776A-B

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: 3~5days after payment done

Payment Terms: L/C, T/T

Supply Ability: 10000 square meters/day

Get Best Price
Contact Now
Specifications
High Light:

8.2mil Polyimide Heat Resistant Tape

,

silicone Polyimide Heat Resistant Tape

,

esd kapton tape

Product Name:
E2-DIH776A-B
Total Tape Thickness:
0.205±0.01mm
Backing Thickness:
0.083±0.00m
Elongation At Break:
≥50%
Static Discharge (Removal From Roll):
<100V
Upmost Temperature:
260℃
Product Name:
E2-DIH776A-B
Total Tape Thickness:
0.205±0.01mm
Backing Thickness:
0.083±0.00m
Elongation At Break:
≥50%
Static Discharge (Removal From Roll):
<100V
Upmost Temperature:
260℃
Description
Double Side Polyimide Heat Resistant Tape 8.2mil Low Anti Static

khjkhj emailkhj workshop

Double Side Polyimide Heat Resistant Tape 8.2mil Low Anti Static



Double side adhesive-coated polyimide tape E2-DIH776A-B polyimide heat resistant tape with super temperature resistance and low anti static performance



E2-DIH776A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance and low static discharge.



Features And Benefits

1. Low electrostatic discharge at unwind.

2. Excellent tensile strength & Elongation.

3. Resistant high temperature up to 500℉.

4. Both sides with different adhesion, no any residue after removal.



Properties:

Item esd kapton tape Typical Value
Imperial Metric
Backing 3.32mil 0.083±0.00m
Total Thickness 8.2mil 0.205±0.01mm
Adhesion to Steel A adhesive >0.62lbs/in >6.5N/25mm
B adhesive <0.096lbs/in <1N/25mm
Surface Resistance / <1011ohms
Tensile Strength ≥45.7lbs/in ≥8(KN/M)
Elongation ≥50% ≥50%
Static Discharge (Removal from roll) <200V <200V
Maximum Operating Temperature 500℉ 260℃



Construction:
Double Side Polyimide Heat Resistant Tape 8.2mil Low Anti Static 3



Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.

Double Side Polyimide Heat Resistant Tape 8.2mil Low Anti Static 4



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

3. Provide samples and best service.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
