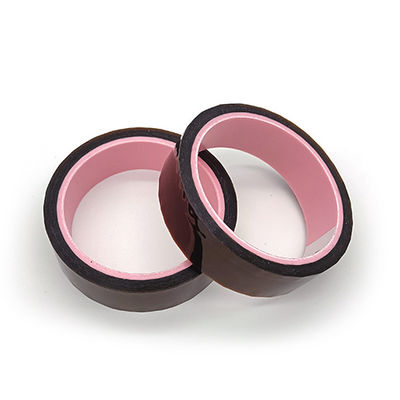

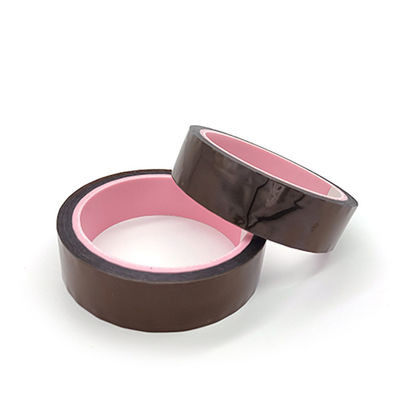

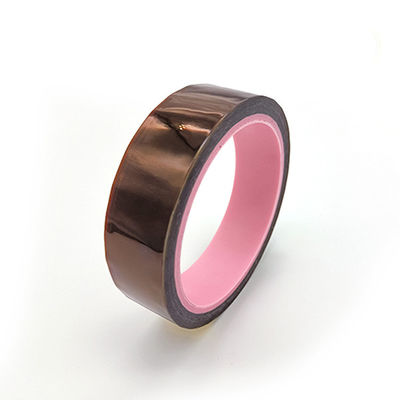

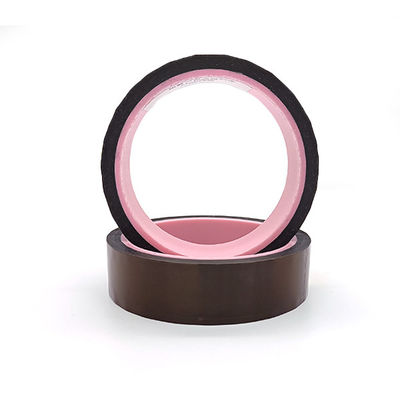

ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: E1-IH803H

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: 3~5days after payment done

Payment Terms: L/C, T/T

Supply Ability: 10000 square meters/day

Get Best Price
Contact Now
Specifications
Highlight:

ESD Polyimide Heat Resistant Tape

,

OEM Polyimide Heat Resistant Tape

,

OEM esd polyimide tape

Product Name:
E1-IH803H
Backing Thickness:
0.025mm
Total Tape Thickness:
0.05±0.005mm
Adhesion To Steel:
4N/25mm
Upmost Temperature:
290℃
Static Discharge (Removal From Roll):
<100V
Product Name:
E1-IH803H
Backing Thickness:
0.025mm
Total Tape Thickness:
0.05±0.005mm
Adhesion To Steel:
4N/25mm
Upmost Temperature:
290℃
Static Discharge (Removal From Roll):
<100V
Description
ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM



ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM



High funcation high temperature resistant ESD polyemide tape E1-IH803H polyimide heat resistant adhesive tape with good heating resistance



E1-IH803H is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.



Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 290℃.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.



Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.

ESD Polyimide Heat Resistant Tape 290	°C 0.05 Thickness OEM ODM 0



Properties:

Product Units Test values
Backing Thickness: mm 0.025
Total Tape Thickness: mm 0.055±0.005
Tack   ≥26(J.DOW/#)
Adhesion to Steel: N/25mm 4N
Tensile Strength at Break: KN/M ≥3.5
Elongation at Break: % ≥45%
Upmost Temperature ° C 290
Surface Resistance ohms 106~9ohms
Static Discharge(Removal from roll) Voltage <100V



Construction:

ESD Polyimide Heat Resistant Tape 290	°C 0.05 Thickness OEM ODM 1



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
