Black ACF High Temperature Kapton Tape Double Sides Anti Static

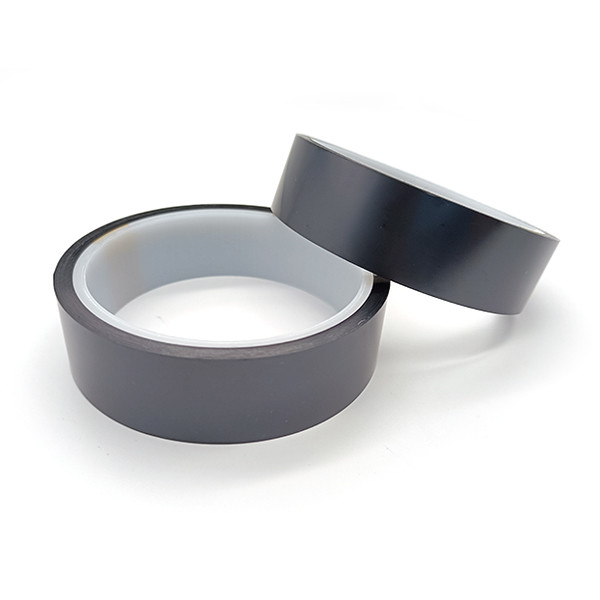

  • Black ACF High Temperature Kapton Tape Double Sides Anti Static

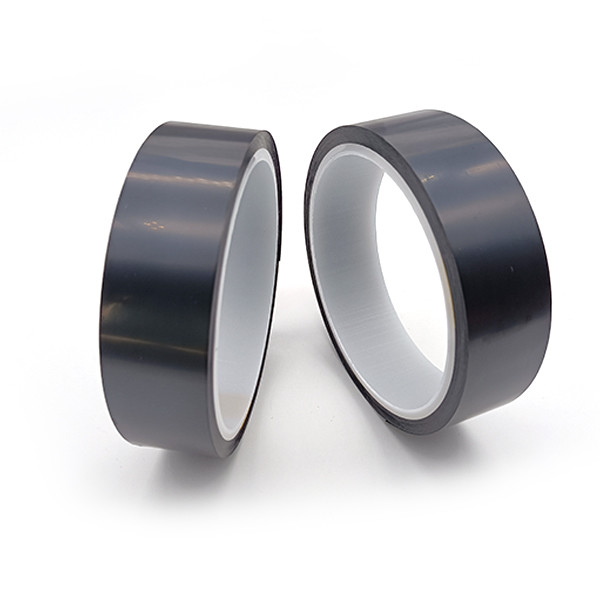

  • Black ACF High Temperature Kapton Tape Double Sides Anti Static

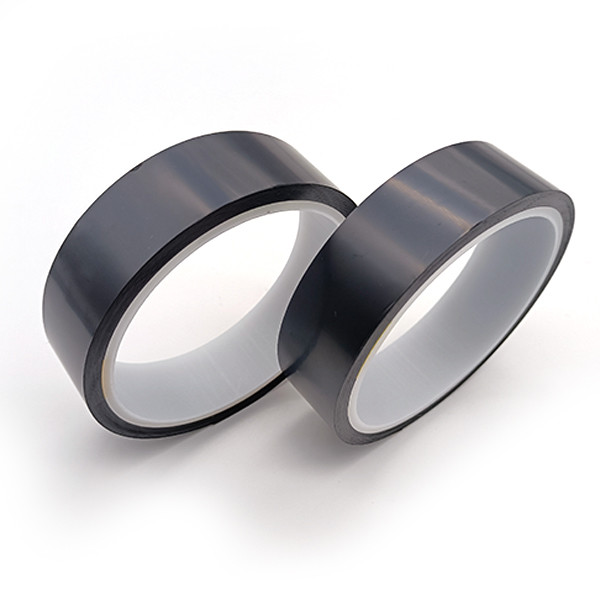

  • Black ACF High Temperature Kapton Tape Double Sides Anti Static

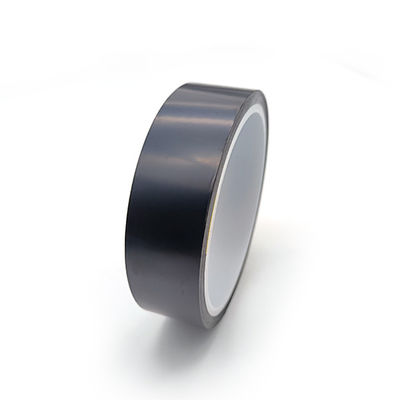

  • Black ACF High Temperature Kapton Tape Double Sides Anti Static

Black ACF High Temperature Kapton Tape Double Sides Anti Static

Place of Origin Guangdong, China
Brand Name KHJ
Certification RoHS
Model Number E2-B82IB
Product Details
Product Name:
E2-B82IB
Backing Thickness:
0.025mm
Thermal Conductivity(w/mk):
0.2±0.05
Transmittance(%):
0
Color Surface:
Matt Black
Color Inside:
Glossy Black
High Light:

ACF High Temperature Kapton Tape

,

Black High Temperature Kapton Tape

,

Black acf bonding tape

Product Description

khjkhj emailkhj workshop

Black ACF High Temperature Kapton Tape Double Sides Anti Static



Black ACF polyimide film - E2-B82IB polyimide heat resistant tape with excellent thermal conductivity



E2-B82IB is a black low static polyimide film , which not only has good anti-static properties on both sides, but also has high temperature resistance.



ACF Bonding Tape Features And Benefits:

1. Excellent Double sides anti-static performance.

2. Excellent thermal conductivity and protection of components.

3. RoHS Compliant.



High Temperature Kapton Tape Properties:

Item  Test Value Test Method
Color Surface Matt black Visual inspection
Inside Glossy black Visual inspection
Backing thickness (μm) 25±3 Micrometer
Surface resistance(ohms) Both face 104-9 Surface impedance meter
Thermal Conductivity(w/mk) 0.2±0.05 Thermal conductivity tester
Transmittance(%) 0
Tensile Strength(MPa) >80 GBT 30776-2014
Elongation(%) >20
Upmost using Temperature(℃) 260℃ JG/T25-2017



Construction:

Black ACF High Temperature Kapton Tape Double Sides Anti Static 3

Application:

Typical applications, widely used for buffer protection under various high and low temperature conditions, such as high temperature welding of flexible boards.

Black ACF High Temperature Kapton Tape Double Sides Anti Static 4



Black ACF High Temperature Kapton Tape Double Sides Anti Static 5



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 6 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. The product should be far away from heat and fire sources;

2. Surface should be clean, dry, free of dust, oil or other contaminants.

3. The product should be kept in the original packaging and stored in a cool and dry environment, away from direct sunlight.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Various designs.

3. Accept small orders.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
