Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-TH862G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month
Product Name: |
E1-TH862G |
Backing Thickness: |
0. 025mm |
Total Tape Thickness: |
0.060±0.005mm |
Tensile Strength At Break: |
≥4KN/M |
Maximum Operating Temperature: |
200℃ |
Adhesion To Steel: |
5-7N/25mm |
Product Name: |
E1-TH862G |
Backing Thickness: |
0. 025mm |
Total Tape Thickness: |
0.060±0.005mm |
Tensile Strength At Break: |
≥4KN/M |
Maximum Operating Temperature: |
200℃ |
Adhesion To Steel: |
5-7N/25mm |

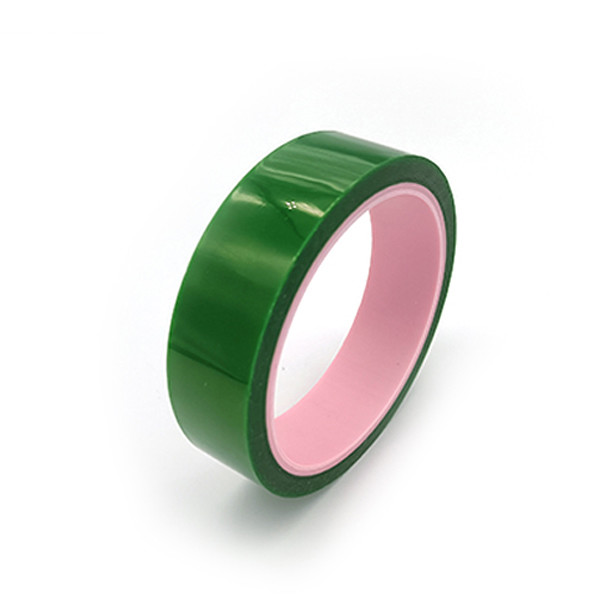

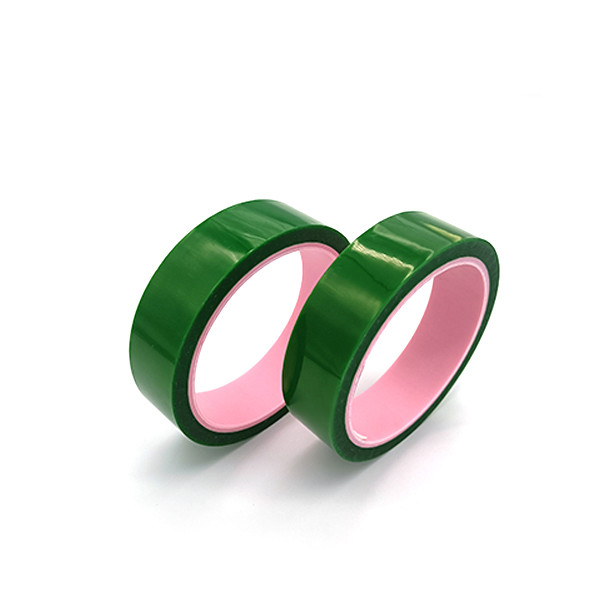

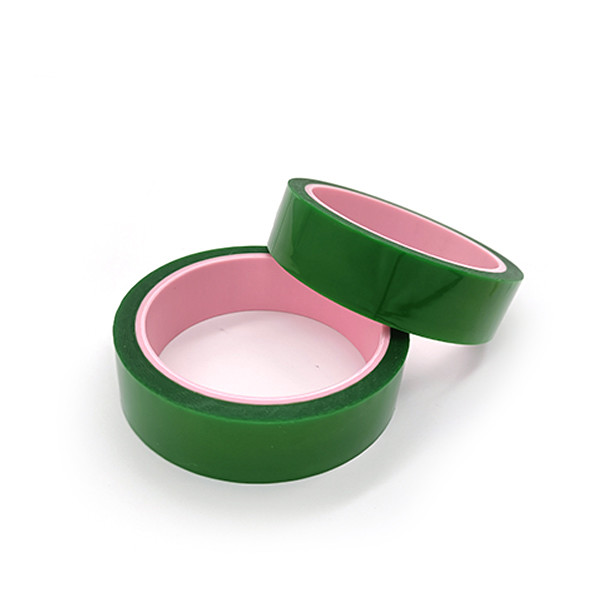

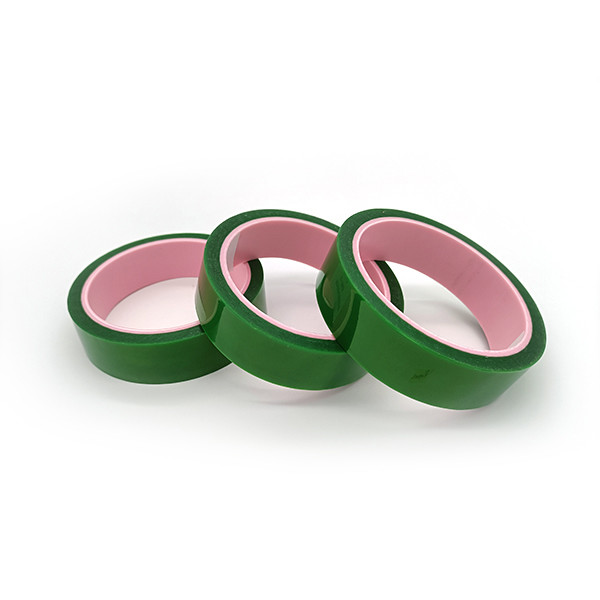

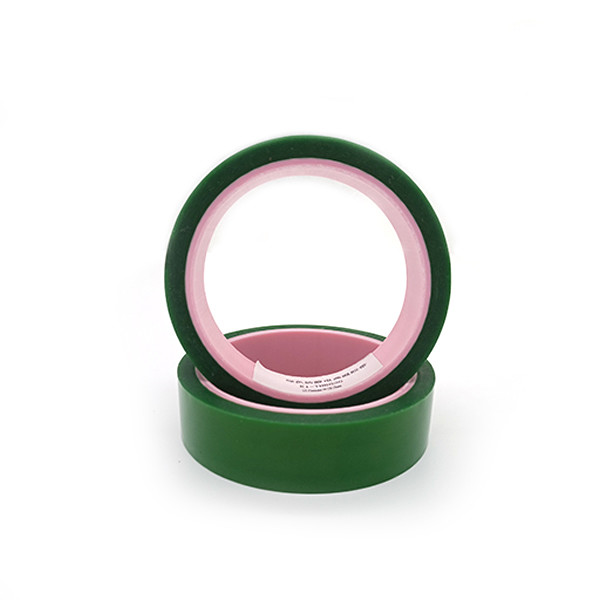

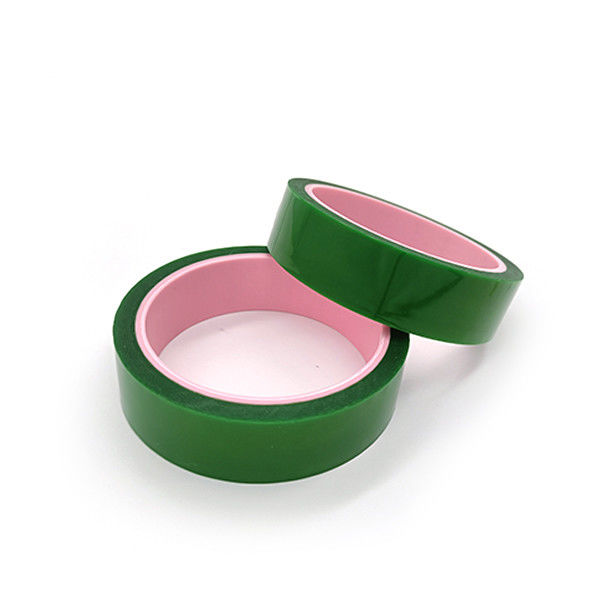

Masking Green Polyester Tape High Temperature Anti Static 2.4mil
Green polyester masking tape E1-TH862G with high temperature antistatic
E1-TH862G is a green tape coated with silicone pressure sensitive adhesive on PET surface. It has good high temperature shielding and antistatic properties.
Features And Benefits:
1. Resistant high temperature up to 200℃.
2. No residue after removal.
3. Excellent anti-aging ability, long shelf life.
Green Polyester Masking Tape Properties:
Item | Typical Value | |
Imperial | Metric | |
Backing | 1.0mil | 0.025mm |
Total Thickness | 2.4±0.2mil | 0.060±0.005mm |
Tack | / | ≥26(J.DOW/#) |
Adhesion to Steel | 1.1~1.6lbs/in | 5~7N/25mm |
Tensile Strength | ≥22.85lbs/in | ≥4(KN/M) |
Elongation | ≥90% | ≥90% |
Surface Resistance | 106~8ohms | 106~8ohms |
Static Discharge (Removal from roll) | <100V | <100V |
Maximum Operating Temperature | 392℉ | 200℃ |
Construction:
Application:
Masking for thermosensitive components of Print circuit boards and temporary holding in wave soldering or reflow soldering process.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. SGS certification.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
