Product Details
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: DIH775A-B
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Supply Ability: 50000 rolls per month
Product Name: |
DIH775A-B |
Total Thickness: |
0.200±0.01mm |
Adhesion To Steel: |
A Side Adhesive：8N/25mm, B Side Adhesive: 0.8N/25mm |
Tensile Strength At Break: |
≥8KN/M |
Dielectric Strength: |
≥8000volts |
Upmost Temperature: |
280℃ |
Product Name: |
DIH775A-B |
Total Thickness: |
0.200±0.01mm |
Adhesion To Steel: |
A Side Adhesive：8N/25mm, B Side Adhesive: 0.8N/25mm |
Tensile Strength At Break: |
≥8KN/M |
Dielectric Strength: |
≥8000volts |
Upmost Temperature: |
280℃ |

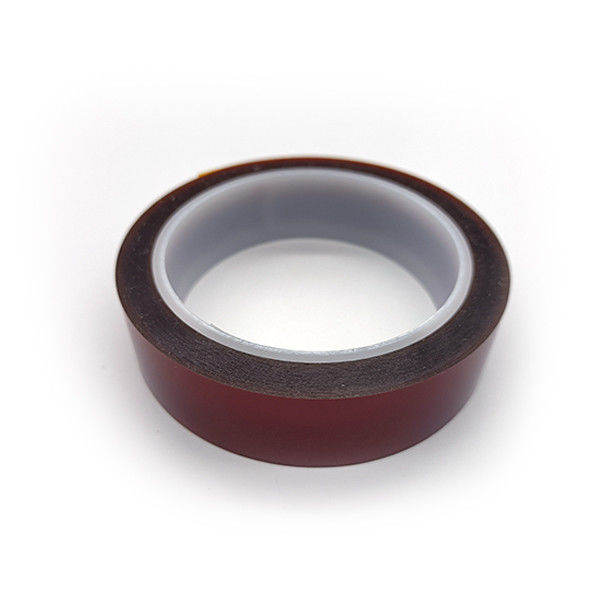

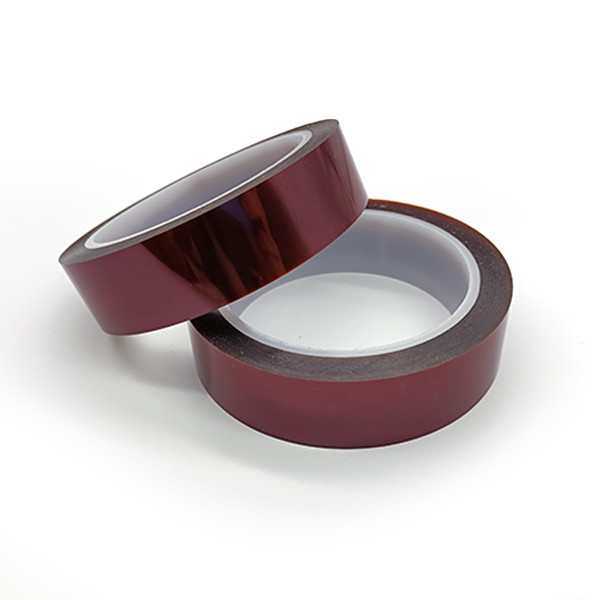

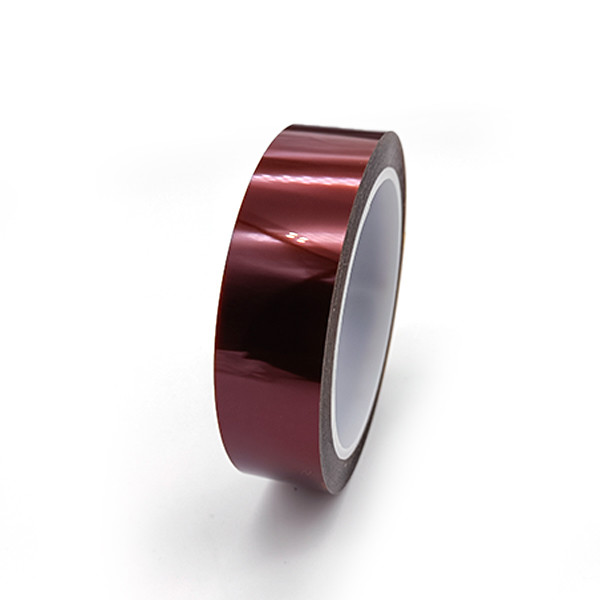

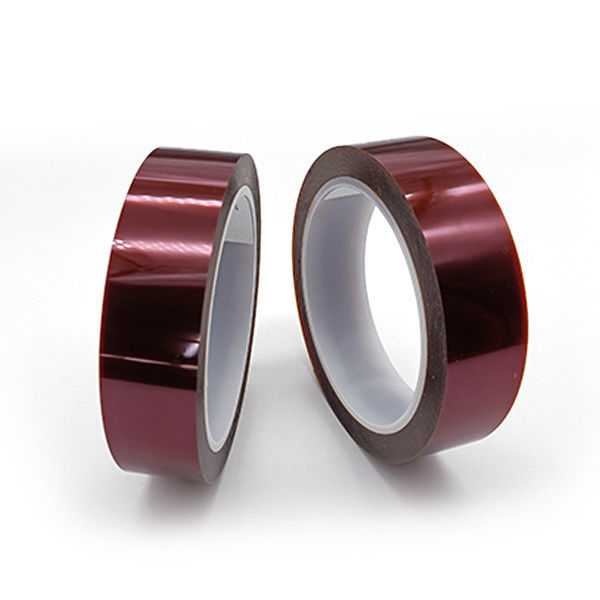

DIH775A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance.
Features And Benefits:
1. Excellent tensile strength & Elongation
2. Withstand Long periods of heat up to 260℃ ; withstand short time of heat up to 300℃
3. Both-sides with different adhesion, no any residue after removal.
Kapton Polyimide Tape Properties:
| Item | Typical Value | |
| Imperial | Metric | |
| Backing | 3.0mils | 0.075mm |
| Total Thickness | 8.0±0.4mil | 0.200±0.01mm |
| Adhesion to Steel | 1.8lbs/in | A adhesive:8.0N/25mm |
| 0.18lbs/in | B adhesive: 0.8N/25mm | |
| Tensile Strength | ≥45.7lbs/in | ≥8(KN/M) |
| Elongation | ≥50% | ≥50% |
| Breakdown voltage | >8KV | >8KV |
|
Operating Temperature |
536℉ | 280℃ |
Construction:
Application:
1. Mask for printed circuit boards during wave solder or solder dip process.
2. Masking contacts during spray painting, powder coating & solder coating.
3. Bundling of transformer, motor, battery & electronic components for insulation purpose.
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
What are our advantages?
1. Professional tape manufacturer for nearly 20 years.
2. Gold supplier.
3. Provide samples and best service.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
