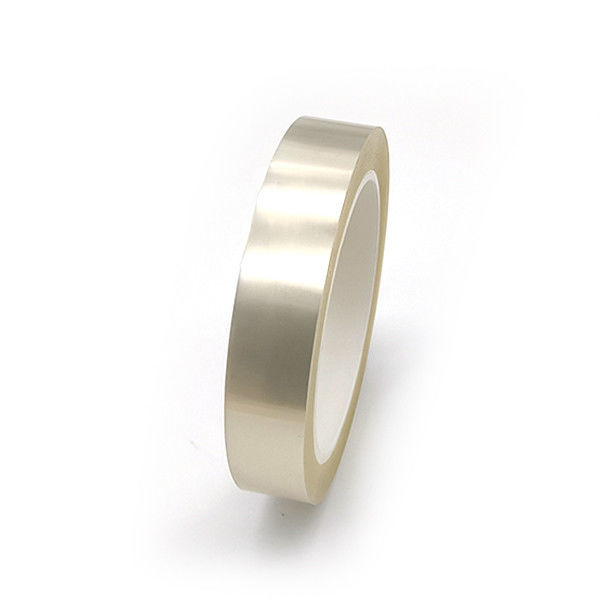

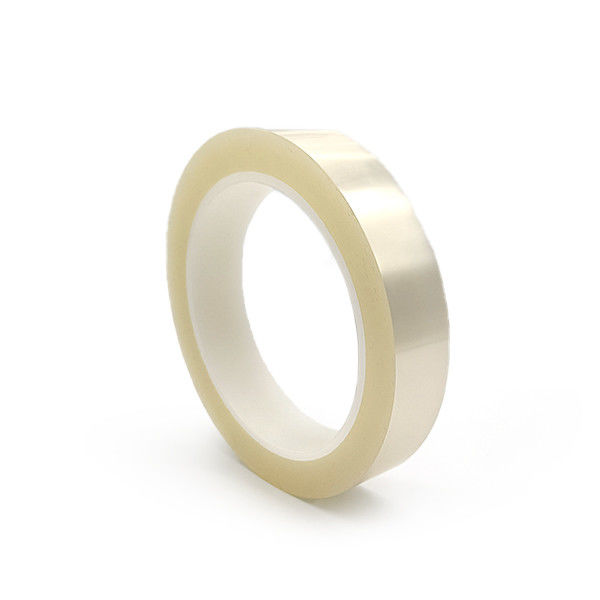

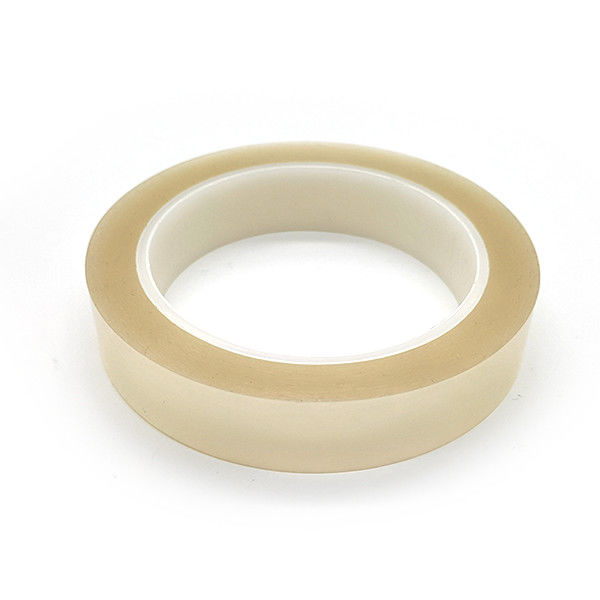

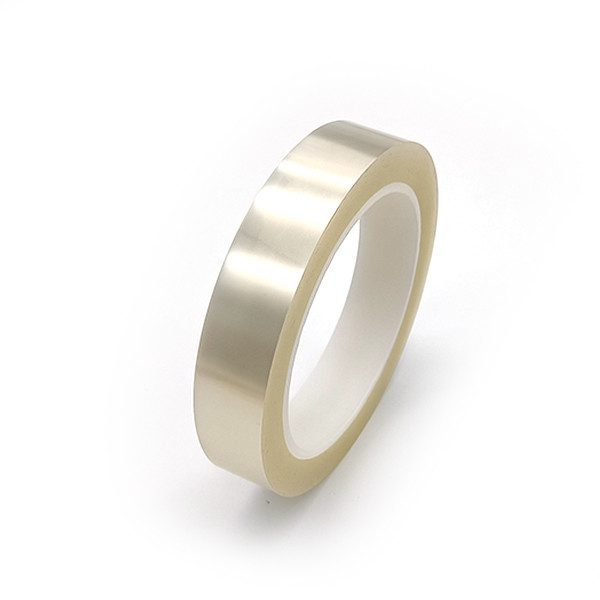

UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick

UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick
UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick

Large Image :  UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E1-UV381S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: For samples 1-3 days and for mass order depends on your QTY.
Payment Terms: L/C, T/T
Supply Ability: 50000 rolls per month

UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick

Description
Product Name: E1-UV381S Backing Thickness: 0.100 ±0.002mm
Total Tape Thickness: 0.120±0.005mm Peeling Strength Before UV: >6N/25mm
Peeling Strength After UV: 0.3N/25mm Elongation At Break: ≥45%
High Light:

0.12mm Polyester Adhesive Tape

,

RoHS Polyester Adhesive Tape

,

0.12mm adhesive polyester tape

UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick



Anti-Static high temperature UV-Releasing adhesive polyester tape E1-UV381S with high initial peeling strength



E1-UV381S is a high performance product coating UV adhesive on the surface of polyester. It has high initial peeling strength. Low adhesion after UV irradiation and no residue after peeling off.



Features and Benefits:

1. High initial adhesion.

2. Low adhesion after UV curing, easy to separate.



Properties:

Item Polyester Adhesive Tape

  Typical Value

Test Method

Test Method

    Metric
Backing   0.100mm /
Total Thickness 0.120±0.005mm /
Peeling strength Before UV 6N/25mm GBT 2792-2014
  After UV 0.03N/25mm
Tensile Strength ≥8(KN/M) GBT 30776-2014
Elongation ≥45% GBT 30776-2014
Surface Resistance 10 6~9 ohms /



Construction:

UV Releasing Polyester Adhesive Tape High Initial Peeling Strength 0.12mm Thick 0



Application:

1. Wafer, component, glass cutting and grinding process cutting.

2. 3D glass bonding process, component packaging transfer.

3. Soft lithium battery protection, metal and anti-static protection.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
