High Temperature Double Side Bonding Tape 8.2mil Anti Static
  • High Temperature Double Side Bonding Tape 8.2mil Anti Static
  • High Temperature Double Side Bonding Tape 8.2mil Anti Static
  • High Temperature Double Side Bonding Tape 8.2mil Anti Static
  • High Temperature Double Side Bonding Tape 8.2mil Anti Static

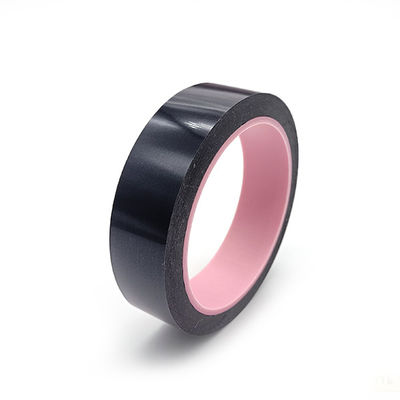

High Temperature Double Side Bonding Tape 8.2mil Anti Static

Place of Origin Guangdong, China
Brand Name KHJ
Certification RoHS
Model Number E1-DIH776A-B
Product Details
Product Name:
E1-DIH776A-B
Upmost Temperature:
260℃
Static Discharge (Removal From Roll):
<200V
Elongation At Break:
≥50%
Backing Thickness:
0. 083±0.00m
Tensile Strength At Break:
≥8KN/M
High Light:

8.2mil Bonding Tape

,

8.2mil Double Side Bonding Tape

,

8.2mil double sided bonding tape

Product Description

khjkhj emailkhj workshop

High Temperature Double Side Bonding Tape 8.2mil Anti Static

High temperature anti-Static double-side coated adhesive E1-DIH776A-B tape


E1-DIH776A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance and low static discharge.

Features And Benefits:

1. Low electrostatic discharge at unwind.

2. Excellent tensile strength & Elongation.

3. Resistant high temperature up to 260℃.

4. Both sides with different adhesion, no any residue after removal.



Properties:

Item  double sided bonding tape Typical Value
Imperial Metric
Backing 3.32mil 0.083±0.00m
Total Thickness 8.2mil 0.205±0.01mm
Adhesion to Steel A adhesive >0.62lbs/in >6.5N/25mm
B adhesive <0.096lbs/in <1N/25mm
Surface Resistance / <1011ohms
Tensile Strength ≥45.7lbs/in ≥8(KN/M)
Elongation ≥50% ≥50%
Static Discharge (Removal from roll) <200V <200V
Maximum Operating Temperature 500℉ 260℃



Construction:



High Temperature Double Side Bonding Tape 8.2mil Anti Static 3



Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.



Why buy from us instead of buying from other suppliers?

1. Good reputation and after-sales service team.

2. Good location and convenient transportation.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
