Caption tape

Product Details

Place of Origin: China

Brand Name: khj

Certification: TDS

Model Number: IH8607M

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: 5$/PCS

Delivery Time: 7 day

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100000

Get Best Price
Product Details
High Light:
Product Description

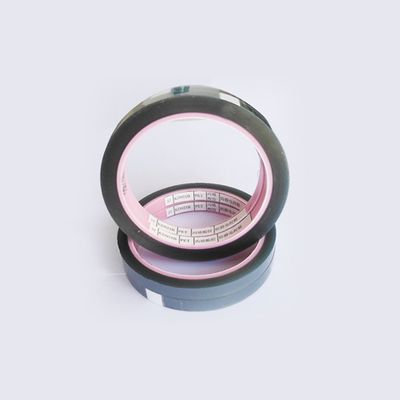

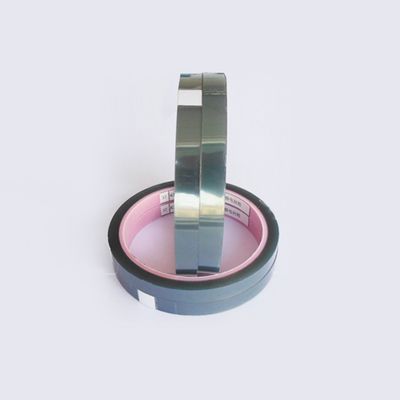

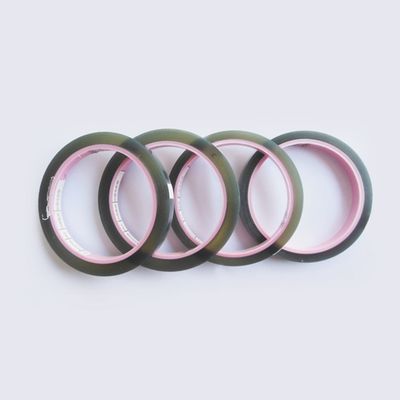

IH8607 Polyimide Film-backed Caption tape offers superior heat resistance and insulation properties, making it suitable for high temperature environments.

Caption tape

Electrical Insulation Features and Clean Removal Without Residue. 280 for 5 minutes Resistance with Excellent Tensile Strength & Elongation Properties; RoHS Compliant.


Applications-Supply of printed circuit boards during wave solder or solder dip processes; masking contacts during spray painting, powder coating & solder coating processes. Bundling transformers, motors, batteries & electronic components together for insulation purposes.


Caption tape

Item Typical Value Test Method
Imperial Metric
Backing 1.0mil 0.025mm /
Total Thickness 2.2mil 0.055±0.005mm /
Tack / ≥26(J.DOW/#) /
Adhesion to Steel 0.91~1.37lbs/in 4~6N/25mm GBT 2792-2014
Tensile Strength ≥20lbs/in ≥3.5(KN/M) GBT 30776-2014
Elongation ≥45% ≥45% GBT 30776-2014



>4000V >4000V /




536℉ 280℃ /


Storage should take place under typical conditions of between 10-30% relative humidity (R.H), out of direct sunlight.

Shelf Life: 12 months from date of manufacturing when stored properly in initial packaging.

Precaution Reminder Surface should be clean, dry and free from dust, oil or other contaminants when applying pressure by roller, hand or press. Repeat sticking should be avoided to prevent adhesion loss.

Please be aware that this technical data sheet has been prepared based on our own laboratory testing and experience only, and must be evaluated by each customer in terms of meeting intended application needs before being approved for use.
