Product Details
Place of Origin: China
Brand Name: khj
Certification: TDS
Model Number: KD80
Payment & Shipping Terms
Minimum Order Quantity: 10
Packaging Details: CARTON PACKING
Delivery Time: 7 day
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000000

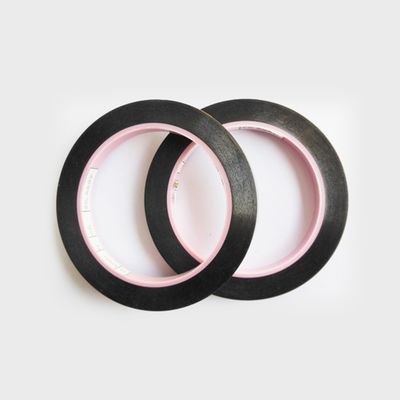

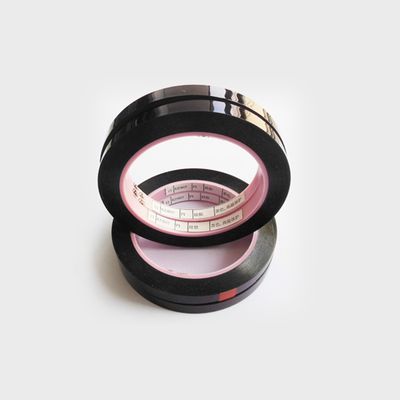

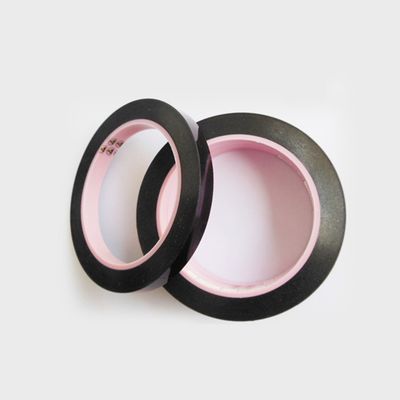

KD803 is a polyimide film-backed kapton silicone adhesive tape featuring excellent heat resistance and low static discharge properties.
Features
Low electrostatic discharge at unwind and removal.
Remarkably resistant to high temperature exposure up to 280 for 10 minutes.
Excellent Tensile Strength and Elongation characteristics.
Application
RoHS Compliantrov Mask for printed circuit boards during wave solder and solder dip processes,
masking contacts during spray painting, powder coating & solder coating processes as well as bundling of transformers,
motors, batteries & electronic components for easy transport and bundling for transporting purposes.
| Properties | |||
| Item | Typical Value | Test Method | |
| Imperial | Metric | ||
| Backing | 1.0mil | 0.025mm | / |
| Total Thickness | 2.2mil | 0.055±0.005mm | / |
| Tack | / | ≥26(J.DOW/#) | / |
| Adhesion to Steel | 0.91~1.37lbs/in | 4~6N/25mm | GBT 2792-2014 |
| Tensile Strength | ≥20lbs/in | ≥3.5 (KN/M) | GBT 30776-2014 |
| Elongation | ≥45% | ≥45% | GBT 30776-2014 |
| Surface Resistance | 105~10ohms | 105~10ohms | / |
| Static Discharge (Removal from roll) | <100V | <100V | / |
| Maximum Operating Temperature | 536℉ | 280℃ | / |
Storage Conditions for Initial Inventory Storage Conditions 10-30 and 40-70% relative humidity for 12 month shelf life when stored initially as intended.
Packing should always take place on surfaces which are clean, dry and free from dust, oil or any other contaminants; when applying this material with roller, hand or press pressure the proper pressure should be used; repeated sticking should be avoided to maintain adhesion levels and not decrease them further.
Please be aware that this technical data sheet has been written based on our own laboratory testing and experience alone, and customers must determine for themselves if the product fits with their intended application requirements before being approved for use.
