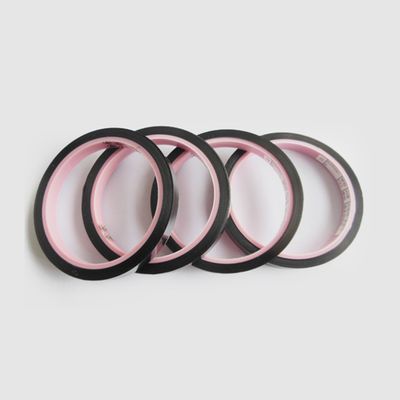

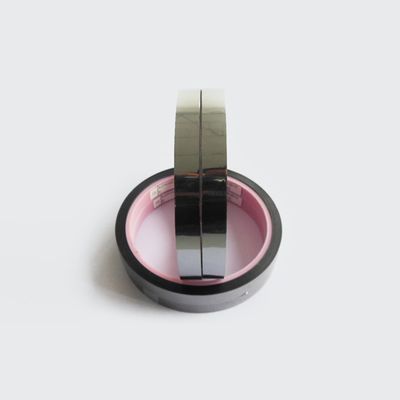

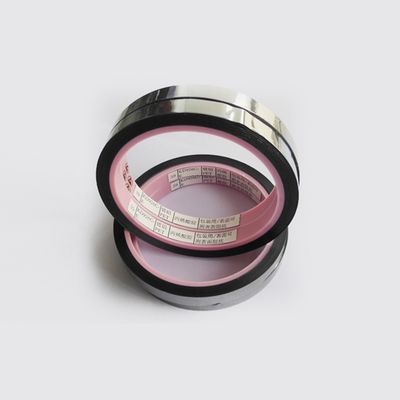

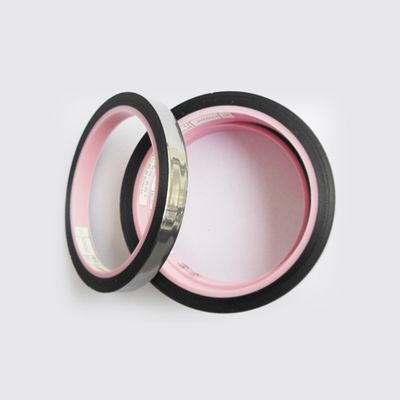

polyimide adhesive tape

Place of Origin China
Brand Name khj
Certification TDS
Model Number KD9966
Product Details
Product Description

KD9966 polyimide adhesive tape features unrivaled heat protection with outstanding heat resistance and low static discharge properties for unrivalled protection from high heat levels and static charge discharge.



Features an extremely low electrostatic discharge upon unwind and removal.

High temperature resistant up to 280 for 10 minutes.

Outstanding Tensile Strength and Elongation Properties.



polyimide adhesive tape

Application (ROHS compliant). A mask designed to shield printed circuit boards during wave solder or solder dip processes;

Masked contacts provide protection during spray painting, powder coating and solder coating processes;

Bundling transformers, motors, batteries & electronic components together for transport is increasingly being done for ease of storage or shipping purposes.







Item Typical Value Test Method
Imperial Metric
Backing 1.0mil 0.025mm /
Total Thickness 2.0mil 0.050±0.005mm /
Tack / ≥26(J.DOW/#) /
Adhesion to Steel 0.91~1.37lbs/in 4~6N/25mm GBT 2792-2014
Tensile Strength ≥20lbs/in ≥3.5 (KN/M) GBT 30776-2014
Elongation ≥45% ≥45% GBT 30776-2014
Surface Resistance 106~8ohms 106~8ohms /
Static Discharge <100V <100V /
Maximum Operating Temperature 536 ℉ 280℃ /



polyimide adhesive tape

Store between 10%-33% RH and 40-70% relative humidity for maximum shelf life of at least 12 months from date of production when stored as indicated above.

Prior to applying pressure using roller, hand, or press, surfaces must be clean, dry, and free from dust, oil or other contaminants that might reduce adhesion levels or result in repetitive sticking which would decrease adhesion levels. Repeat sticking should also be avoided to maintain optimal adhesion levels without decreasing them further over time.

Please be aware that this technical data sheet was written based solely on laboratory tests and experience rather than considering specific customer application needs. Ultimately it's up to the customer to ascertain if a product meets these criteria prior to being accepted for use.
