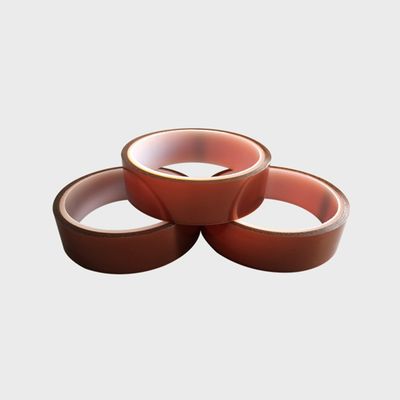

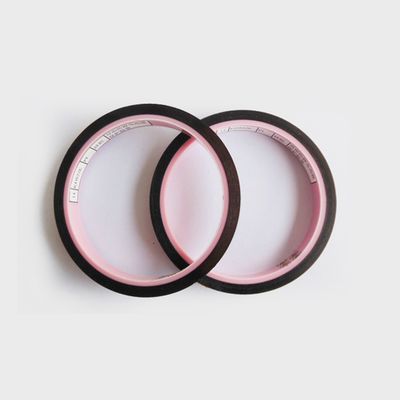

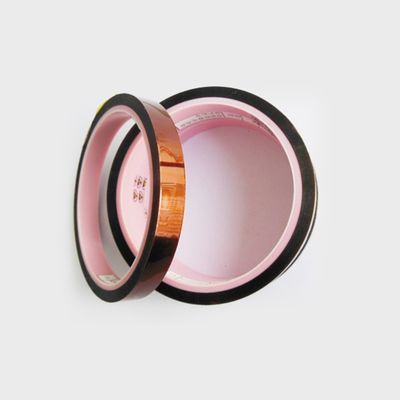

Kapton Tape 1 inch

Product Details

Place of Origin: China

Brand Name: khj

Certification: TDS

Model Number: DIH772A-BM

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 7 day

Payment Terms: L/C

Get Best Price
Product Details
High Light:
Product Description

DIH772A-B is a film-backed polyimide tape coated on both sides with two sides coated silicone adhesive for high temperature resistance and excellent properties of kapton tape 1 inch.

kapton tape

 Low electrostatic discharge at unwind and removal.
 Excellent tensile strength & Elongation
 Withstand Long periods of heat up to 260℃ ; withstand short time of heat
up to 300℃
 Both-Face with similar adhesion ,No any residue after removal
 Mask for printed circuit boards during wave solder or solder dip process.
 Masking contacts during spray painting, powder coating & solder coating.
 Bundling of transformer, motor, battery & electronic components for
insulation purpose.
Item Typical Value Test Method
Imperial Metric
Backing 1.0mil 0.025mm /
Total Thickness 3.0±0.2mil 0.075±0.005mm /
Adhesion to Steel 0.25lbs/in A adhesive:2.7N/25mm GBT 2792-2014
0.20lbs/in B adhesive : 2.1N/25mm
Tensile Strength ≥20lbs/in ≥3.5 (KN/M) GBT 30776-2014
Elongation ≥45% ≥45% GBT 30776-2014
Breakdown voltage >8KV >8KV /
Maximum Operating Temperature 500℉ 260℃ /



Store under optimal conditions between 10-30 and 40-70% relative humidity for best results; avoid direct sunlight. Shelf Life: 12 months from the date of manufacturing when stored properly


Precaution Reminder
Packing requires clean, dry surfaces free from dust, oil or other contaminants that might compromise adhesion. Proper pressure must be applied by roller, hand or press when applying it - repeat sticking can decrease adhesion levels over time.



Please be aware that this technical data sheet has been prepared based solely on laboratory testing and experience, not customer preferences or specifications. Customers must first ensure the product meets their application needs before being given approval to use.
