| Brand Name: | KHJ |
| Model Number: | E2-UV395D |
Description

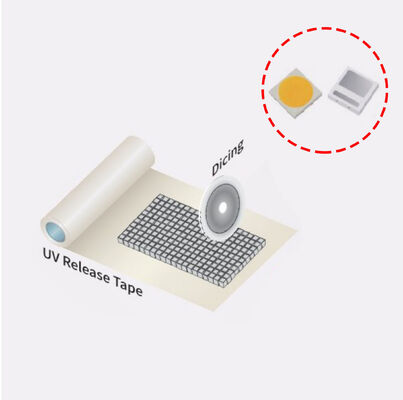

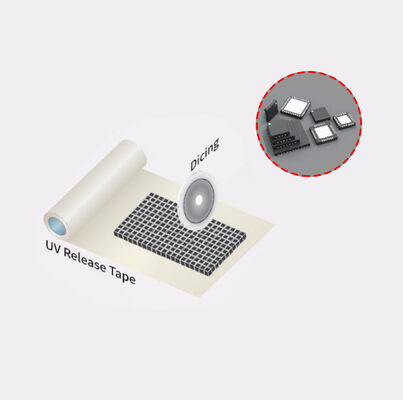

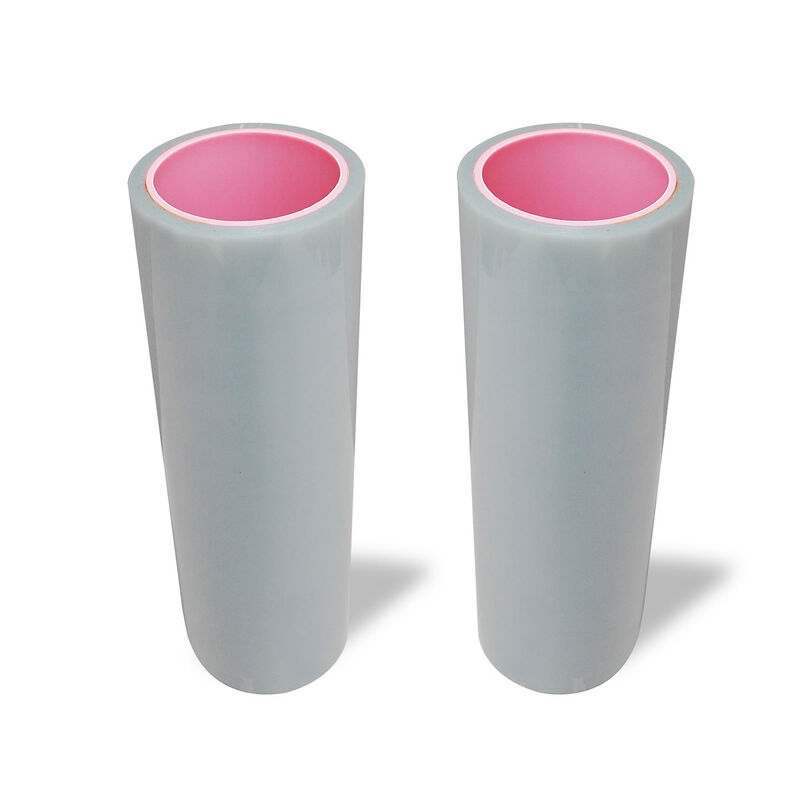

E2-UV391A is An anti-static UV adhesive tape with high initial tack, after UV irradiation,the stickiness of the surface is greatly reduced, and it can be easily peeled off.
Construction
Features
| Item | Typical Value | Test Method | ||
| Imperial | Metric | |||
| Backing | 6.0mils | 0.15mm | ASTM D1005 | |
| Total Thickness | 6.88mil | 0.08mm | ASTM D1005 | |
| Adhesion to Steel | Before UV | 5.63lbs/in | 25N/25mm | GBT 2792-2014 |
| After UV | 0.03lbs/in | 0.15N/25mm | ||
| Glue Impedance | 106-10ohms | JFF 1285-2011 | ||
| Tear voltage | <100V | ESD VDA 11.2 2009 | ||
| Tensile Strength | Horizontal | 20Mpa |
GBT 30776-2014
|
|
| Vertical | 20Mpa | |||
| Elongation | Horizontal | 500% | ||
| Vertical | 500% | |||
Conditions of UV irradiation: UV irradiation energy is 500-600mj/cm2, dominant wavelength is 365nm.
Storage
