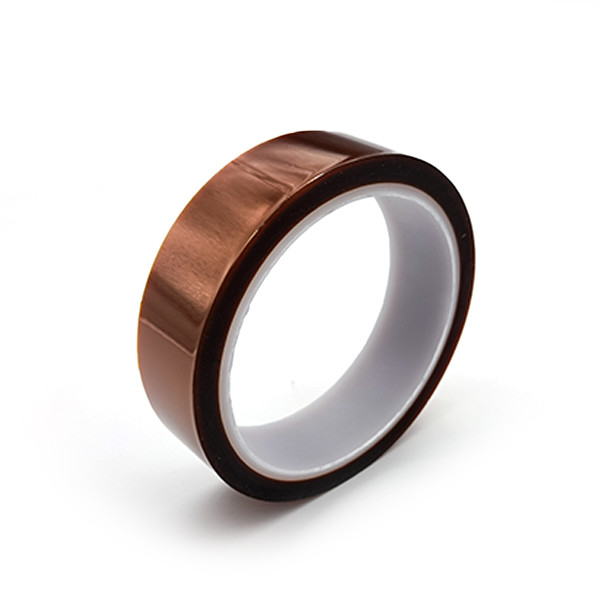

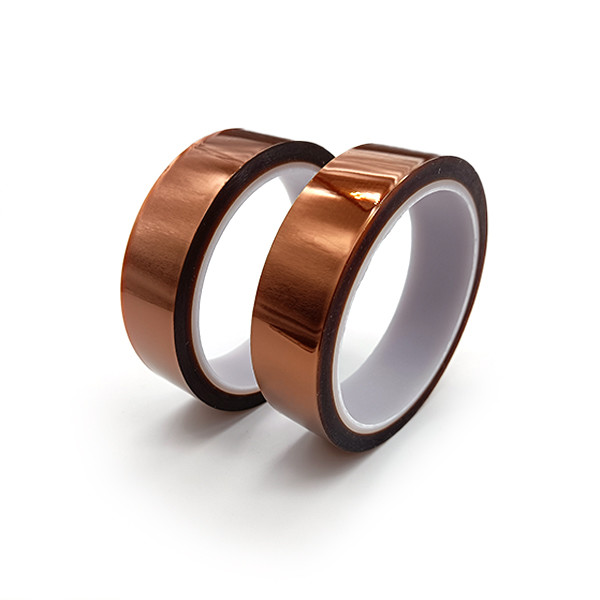

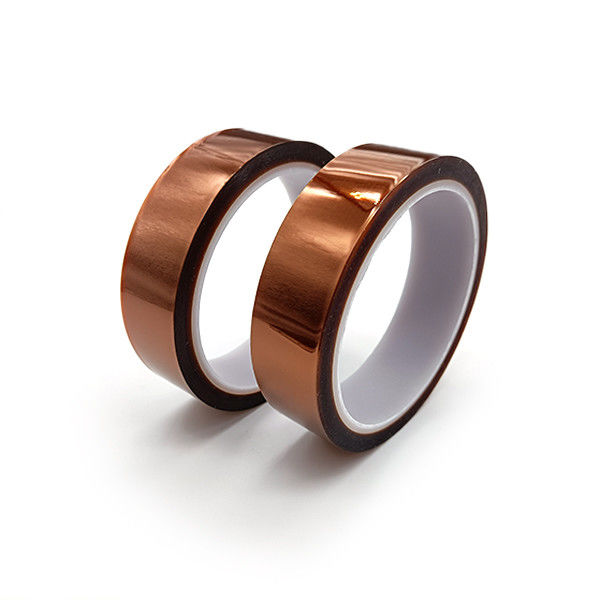

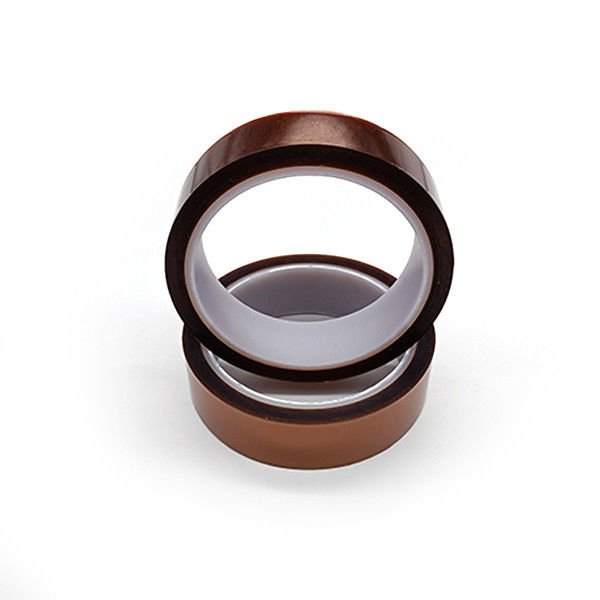

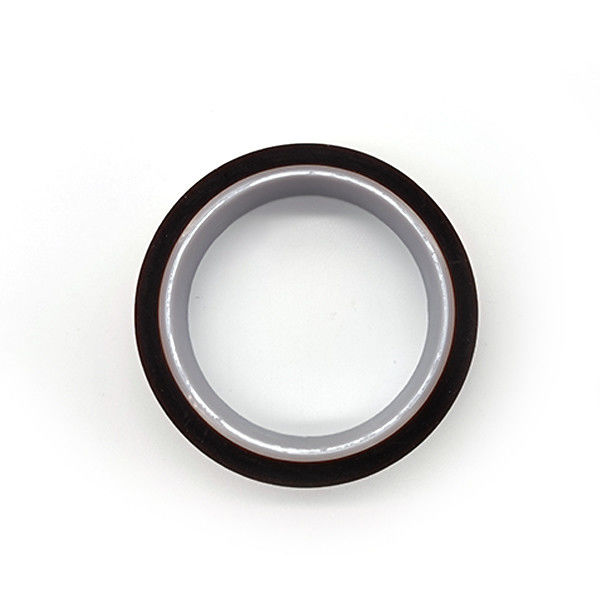

High Adhesion Polyimide Heat Resistant Tape silicone adhesive RoHS approved

Product Details

Place of Origin: Guangdong, China

Brand Name: KHJ

Certification: RoHS

Model Number: IH852A

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Plastic bag + carton

Delivery Time: 3~5days after payment done

Payment Terms: L/C, T/T

Supply Ability: 10000 square meters/day

Get Best Price
Product Details
High Light:

RoHS Polyimide Heat Resistant Tape

,

6N Polyimide Heat Resistant Tape

,

RoHS Polyimide Tape

Product Name:
IH852A
Backing Thickness:
0.025mm
Total Tape Thickness:
0.055±0.005mm
Adhesion To Steel:
4~6N/25mm
Tensile Strength At Break:
≥3.5(KN/M)
Upmost Temperature:
280℃
Product Name:
IH852A
Backing Thickness:
0.025mm
Total Tape Thickness:
0.055±0.005mm
Adhesion To Steel:
4~6N/25mm
Tensile Strength At Break:
≥3.5(KN/M)
Upmost Temperature:
280℃
Product Description



High Adhesion Polyimide Heat Resistant Tape Silicone Adhesive RoHS Approved



Competitive polyimide film tape-IH852A polyimide heat resistant tape with high adhesion



IH852A is a polyimide film backed silicone adhesive tape with excellent heat resistance and insulation properties.



Features And Benefits:

1. Electrical insulation and clean removal without residue.

2. Resistant high temperature up to 280℃ for 10 minutes.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.



Properties:

Product Units Test values
Backing Thickness: mm 0.025
Total Tape Thickness: mm 0.055±0.005
Tack   ≥26(J.DOW/#)
Adhesion to Steel: N/25mm 4~6N
Tensile Strength at Break: KN/M ≥3.5
Elongation at Break: % ≥45%
Upmost Temperature ° C 280
Dielectric Strength Voltage >6000V



Construction:

High Adhesion Polyimide Heat Resistant Tape silicone adhesive RoHS approved 0



Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.



Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
