Home ProductsPolyimide Heat Resistant Tape

Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes

Certification
China Shenzhen KHJ Technology Co., Ltd certification
China Shenzhen KHJ Technology Co., Ltd certification
I'm Online Chat Now

Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes

Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes
Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes

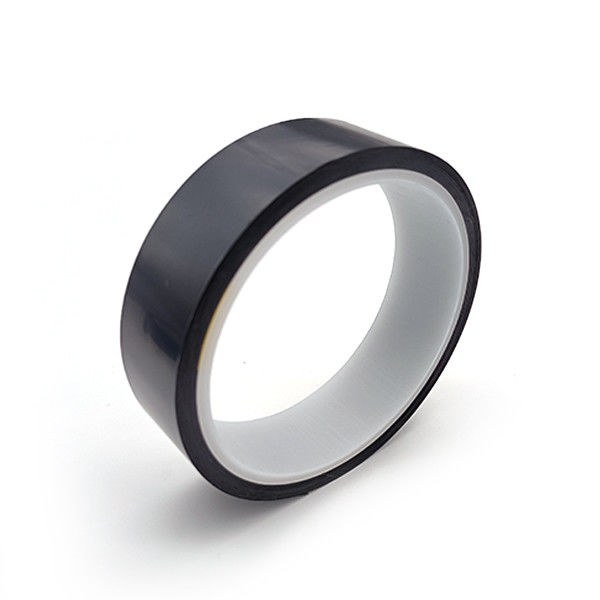

Large Image :  Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes

Product Details:
Place of Origin: Guangdong, China
Brand Name: KHJ
Certification: RoHS
Model Number: E2-B82IB
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plastic bag + carton
Delivery Time: 3~5days after payment done
Payment Terms: L/C, T/T
Supply Ability: 10000 square meters/day

Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes

Description
Product Name: E2-B82IB Backing Thickness: 0.025mm
Thermal Conductivity(w/mk): 0.2±0.05 Tensile Strength At Break: >80(KN/M)
Elongation At Break: >20% Upmost Temperature: 260℃
High Light:

Anti Static Polyimide Film Tape

,

Double Sided Polyimide Film Tape

,

Polyimide Double Sided Heat Resistant Tape

Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes



Black anti-static polyimide film -E2-B82IB polyimide heat resistant tape with high adhesion



E2-B82IB is a black low static polyimide film , which not only has good anti-static properties on both sides, but also has high temperature resistance.



Features And Benefits:

1. Excellent Double sides anti-static performance.

2. Excellent thermal conductivity and protection of components.

3. RoHS Compliant.



Properties:

Item Test Value Test Method
Color Surface Matt black Visual inspection
Inside Glossy black Visual inspection
Backing thickness (μm) 25±3 Micrometer
Surface resistance(ohms) Both face 104-9 Surface impedance meter
Thermal Conductivity(w/mk) 0.2±0.05 Thermal conductivity tester
Transmittance(%) 0
Tensile Strength(MPa) >80 GBT 30776-2014
Elongation(%) >20
Upmost using Temperature(℃) 260℃ JG/T25-2017



Construction:

Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes 0

Application:

Typical applications, widely used for buffer protection under various high and low temperature conditions, such as high temperature welding of flexible boards.

Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes 1



Anti Static Polyimide Film Tape Black Color Double Sided Heat Resistant Tapes 2



Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 6 months from the date of manufacture when stored in initial packing.



Precaution Reminder:

1. The product should be far away from heat and fire sources;

2. Surface should be clean, dry, free of dust, oil or other contaminants.

3. The product should be kept in the original packaging and stored in a cool and dry environment, away from direct sunlight.



Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.



Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
